Aten VS0102 2-port VGA Splitter with Audio&RS-232

€ 56,95 € 47,07
Direct leverbaar
2-port VGA Splitter with Audio & RS-232

Omschrijving

The ATEN VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0102 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 8 video displays while sustaining the highest quality possible.

Voor meer informatie.

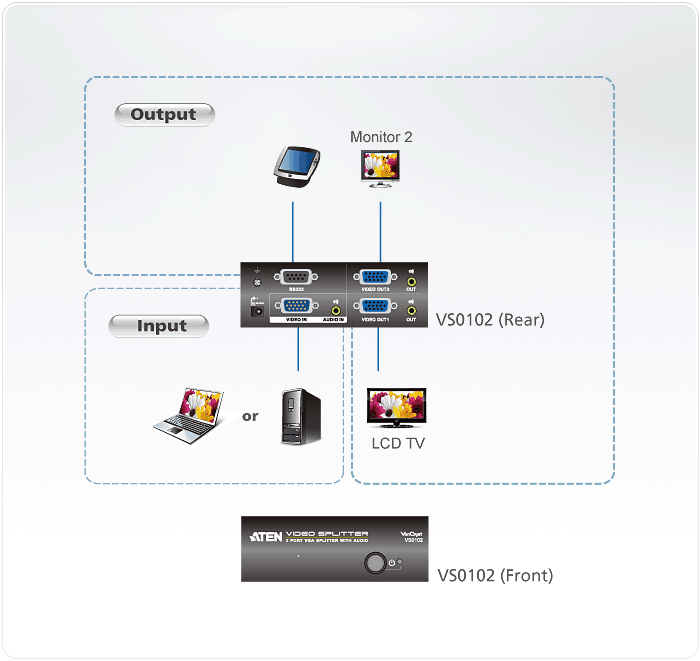

Diagram

inhoud

  • 1x 2-Port VGA Splitter with Audio
• 1x 0AD6-1605-09EG Power Adapter
• 1x User Instructions

Specifications

Display Connections 2
Connectors Input Video 1 x HDB-15 Male (Blue)
Audio 1 x Mini Stereo Jack Female (Green)
Output Video 2 x HDB-15 Female (Blue)
Audio 2 x Mini Stereo Jack Female (Green)
RS-232 Port 1 x DB-9 Female (Black)
Power 1 x DC Jack
Switches Power 1 x Pushbutton
LEDs Power 1 (Green / Orange)
Video 1920 x 1440 @ 60Hz
Power Consumption DC5.3V, 0.8W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.46 kg
Dimensions
(L x W x H)
13.00 x 7.61 x 4.40 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
