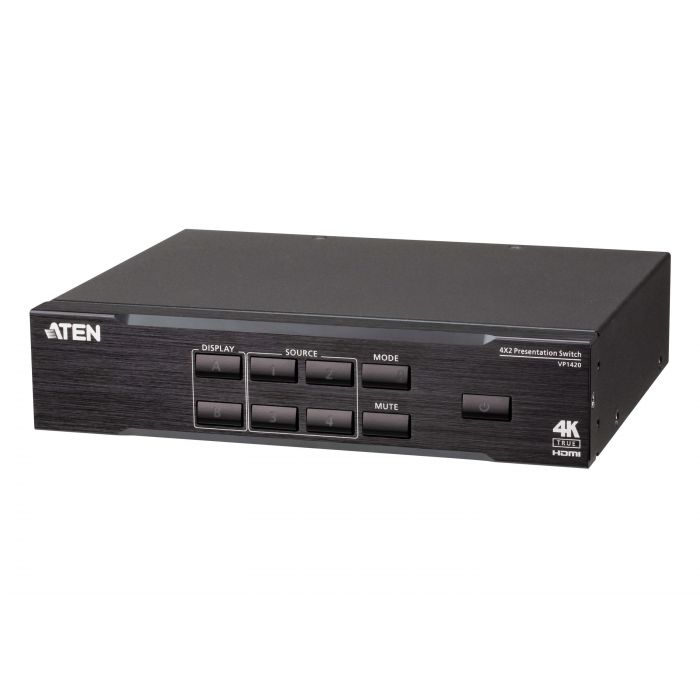

De ATEN VP1420 is een veel-in-één presentatieschakelaar die functies voor een video matrix switch, True 4K scaler, audioprocessor en analoog-naar-digitaalconverter combineert in een enkel compact apparaat dat gemakkelijk onder een tafel of in een rek kan worden gemonteerd. Met vier analoge/digitale ingangen naar twee HDMI True 4K-uitgangen is hij ontworpen om de efficiëntie en het effect van professionele presentaties te versterken.
| Video Input | |
| Interfaces | 3 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female (Blue) |
| Max. Distance | HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m VGA: 1080p@60Hz at 15m |
| Video Output | |
| Interfaces | 2 x HDMI Type A female (Black) |
| Max. Distance | HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m |
| Video | |
| Max. Resolution | HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) VGA: Up to 1080p@60Hz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K); 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC) |
| Audio | |
| Input | Stereo Audio (VGA): 1 x mini stereo Jack female (Green) Stereo Audio (HDMI): 1 x mini stereo Jack female (Green) |
| Output | Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole |
| Control | |
| RS-232 | 1 x Captive Screw Connector, 3-pole |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female (Silver) |
| Contact In | 1 x Captive Screw Connector, 5-pole |
| LED Out | 1 x Captive Screw Connector, 5-pole LED out power: +5 VDC, 0.2 A |
| Switches | |
| Power | 1 x Pushbutton (LED: Green / Orange) |
| Video Input Port Selection | 4 x Pushbutton (LED: Green) |
| Video Output Port Selection | 2 x Pushbutton (LED: Orange) |
| Selection | Mute: 1 x Pushbutton Mode / Unlock: 1 x Pushbutton |
| EDID Settings | EDID Mode: ATEN Default / Display A / Remix |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5V:7.21W:38BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.09 kg ( 2.4 lb ) |
| Dimensions (L x W x H) | 20.00 x 16.05 x 4.40 cm (7.87 x 6.32 x 1.73 in.) |
| Carton Lot | 3 pcs |
