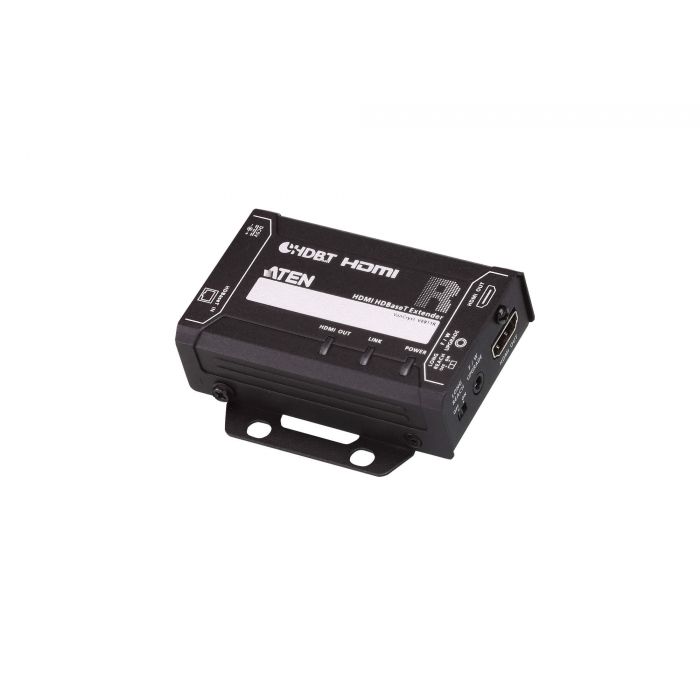

De ATEN VE811 HDMI HDBaseT-extender garandeert de optimale HDMI-verbinding tot 100 m over een enkele Cat 5e/6/6a of ATEN 2L-2910 Cat 6-kabel. De VE811 voldoet aan opties uit de HDMI Specification waaronder 3D, Deep Color, HD lossless audio-indelingen en CEC pass-through. Het ondersteunt Dolby Digital 5.1, DTS HD audio- en videosignalen met resoluties tot 4K. Tevens ondersteunt de VE811 Long Reach Mode, wat een effectieve manier is om HDMI-signalen tot 150 m uit te breiden over een enkele Cat 5e/6-kabel.
| Function | VE811R | VE811T |
| Video Input | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 ? | N/A |
| Video | ||
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | N/A |
| Connectors | ||
| Unit To Unit | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Firmware Upgrade | 1 x Mini Stereo Jack Female (Black) | 1 x Mini Stereo Jack Female (Black) |
| Power | 1 x DC Jack (Black) with locking | 1 x DC Jack (Black) with locking |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch - ON/OFF | 1 x Slide Switch - ON/OFF |
| Power Consumption | DC5V:3.77W:18 | DC5V:3.84W:18 |
| Environmental | ||
| Operating Temperature | 0 - 40°C | 0 - 40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.17 kg ( 0.37 lb ) | 0.16 kg ( 0.35 lb ) |
| Dimensions (L x W x H) with bracket | 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.) | 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.) |
| Dimensions (L x W x H) without bracket | 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.) | 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
