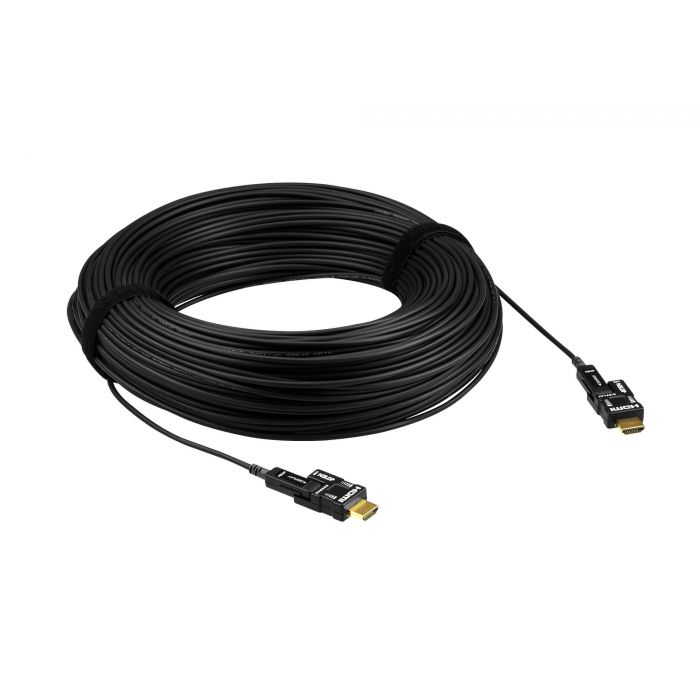

De ATEN VE7834 optische kabel gebruikt AOC-technologie die conversie mogelijk maakt tussen invoersignalen en optische signalen voor gegevensoverdracht over een optimale grote bandbreedte. De EMI-bestendige optische kabel is verkrijgbaar met een lengte van 60 m met
| Certifications | |
| Certifications | Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF |
| Notification | Bend Radius: 6mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Reduced EMI & RFI |
| Jacketed | |
| Material | UL Plenum (CMP-OF) |
| Conductor | |
| Construction | 6 x Insulated Copper wire (28 AWG) 4 x Fiber |
| Cable Length | 60M / 196.85ft |
| Communication | |
| Signals | TMDS / HDCP 2.2 / EDID / CEC |
| Power (Optional) | Optional power source: Micro USB to USB cable (45cm) 5V, 0.148A |
| Audio | |
| Input | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Output | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Cable Type | Cable Type: Hybrid optical with fiber and copper wire HDMI Standards: High Speed HDMI Cable (HDMI 2.0) |
| Video Input | |
| Interfaces | 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black) |
| Video Output | |
| Interfaces | 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps per Channel) |
| Max. Pixel Clock | 600 MHz (Max.) |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K, HDR) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit |
| Max. Resolutions / Distance | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 60m |
| Power Consumption | DC5.3V:0.63W:2.15BTU |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32? to 122?) |
| Storage Temperature | -20°C to 70°C (-4? to 158?) |
| Humidity | 0 - 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Connector Case: ABS (Acrylonitrile Butadiene Styrene) |
| Weight | 1.00 kg ( 2.2 lb ) |
| Cable Outer Dimension | Cable Outer Diameter: 3.4mm (± 0.2mm) |
| Conductor Gauge | Copper wire (28 AWG) |
| Conductor Material | Copper |
| Unit weight | 1.0 kg / 2.2 lb |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
