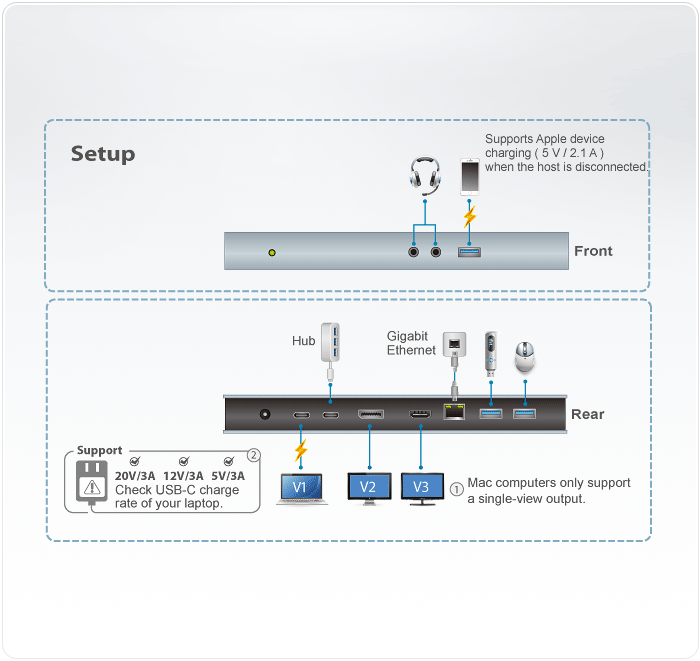

Het UH3230 USB-C Multiport Dock verbindt een USB-C embedded computer met tot 8 poorten voor randapparaten waaronder USB-C, Gigabit LAN, DisplayPort met Multi-Stream Transport, HDMI, audio en drie USB 3.1 Gen 1 poorten – over één enkele USB-C kabel. Met de UH3230 kunt u uw laptop snel aansluiten en laten werken als een bureaucomputer. Dit multipoort dock ondersteunt tevens 60 W USB-C Power Delivery 2.0, wat betekent dat de UH3230 bijpassende USB-C laptops van stroom kan voorzien met PD Profile-specificaties van 20 V/3 A, 20 V/1,8 A, 12 V/3 A en 5 V/3 A.
*Met Intel 7th- Generation Core Processor (Kaby Lake) en hoger
** Mac-computers ondersteunen alleen Enkelvoudige Beeld-uitgang.
***Alleen ondersteuning voor iPad Pro video-uitvoer en USB-toetsenbord
| Computer Connections | 1 |
| Connectors | |
| Device | 1 x USB-C Female (Black, Data only) 3 x USB3.1 Gen1 Type A Female (Blue) |
| Computer | 1 x USB-C Female (Black) |
| Video Output | 1 x Displayport Female (Black) 1 x HDMI Female (Black) |
| LAN Ports | 1 x Gigabit Ethernet Female (Black) |
| Audio Inputs | 1 x 3.5mm Stereo Input Female (Black) |
| Audio Outputs | 1 x 3.5mm Stereo Output Female (Black) |
| Power Jack | 1 |
| LEDs | |
| Power | 1 (White) |
| Video Resolution | Single-View: DisplayPort- 3840x2160@30* or HDMI - 4096x2160@30 Dual-View**: DisplayPort 1 - 2048x1200@60* HDMI 2 - 1920x1200@60 *For video output to work through a USB-C port, it must support DP Alt Mode. The UH3230 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI. ** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output. |
| Power Consumption | DC20V , 90W |
| Package Contents | 1 x USB-C Cable |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.56 kg ( 1.24 lb ) |
| Dimensions (L x W x H) | 20.00 x 9.07 x 2.15 cm (7.87 x 3.57 x 0.85 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
