| Video Input | |

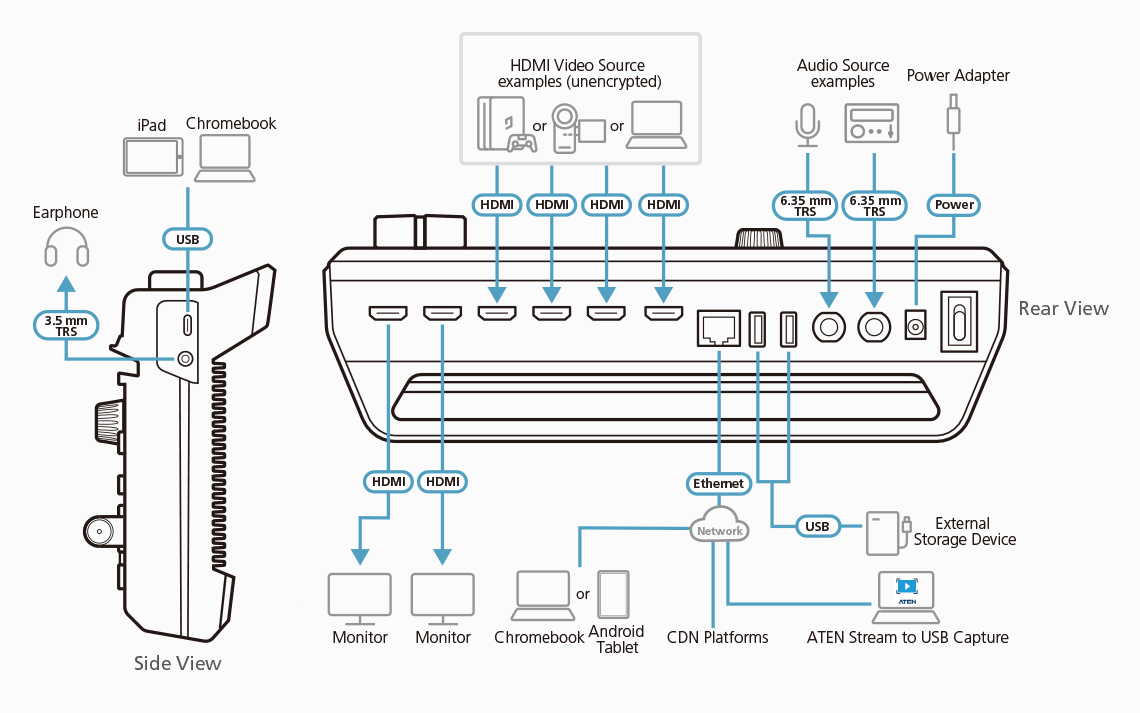

| Interfaces | 1 x 4K HDMI Type-A Female (up to 2160p60, unencrypted) 3 x HDMI Type-A Female (up to 1080p60, switcher, unencrypted ) |
| Video Output | |
| Interfaces | 1 x 4K Loop-Thru HDMI Type-A Female (up to 2160p60, unencrypted) 1 x PGM HDMI Type-A Female (up to 1080p60, unencrypted) |
| Video Sampling | 4:2:2 8-bit |
| Color Space | 4:2:2 YUV |
| Video Resolution | HDMI 1 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 HDMI 2/3/4 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25 SRC/PGM HDMI Output: 480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25 HDMI Loop-Through Output: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 |
| Audio Inputs | |
| Interfaces | HDMI captured inputs (stereo) 2 x 1/4" TRS jack (dual mono) |
| Audio Outputs | |
| Interfaces | HDMI outputs (stereo) 1x 1/8" TRS jack (stereo) |
| Network Protocol | Dual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS) ------------------------------------------------------- Video Encoding Format: H.264 Bit rate: 512Kbps~10Mbps Color Format: YUV420 Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25 ------------------------------------------------------------------- Audio Encoding Format: AAC Sampling rate: 48kHz Bit rate: 128kbps |
| Recording Storage | Max. video resolution: 1080p30/25 File format：MP4 Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space |
| Connection | 2x USB 3.1 Gen1 Type-A Female (blue) 1x USB Type-C 1x GbE LAN port |
| Environmental | |
| Operating Temperature | 0 - 40 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| OS Support | System requirements for iPads: • iPad Pro (3rd gen or later) with iOS 11 and above The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required): • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later) System requirements for Android tablets: • Android 9 and above • Octa-Core ARM Cortex grade CPU and above • Minimum 2.75GB system RAM • UC9040 with Firmware Ver.1.1.109 is also required System requirements for Chromebook: • Chromebook with Android APP support • UC9040 with Firmware Ver.1.3.121 is also required System requirements for Windows PC: • A PC with Windows 10 version 17763.0 or higher, 32/64-bit • CPU: Intel® i3 Dual Core 2.8Ghz or higher • RAM: 4GB or more • OnAir App for Window from Windows Store • UC9040 with Firmware Ver.1.3.122 is also required |
| Power | |
| Maximum Input Power Rating | DC12V, 7.5A |
| Power Consumption | DC12V:17.37W:184BTU/h |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.85 kg ( 4.07 lb ) |
| Dimensions (L x W x H) | 28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 in.) |
