• PE1324B: 200~240V; Noord-Amerika, Mexico, Japan, Taiwan
• PE1324G: Internationaal

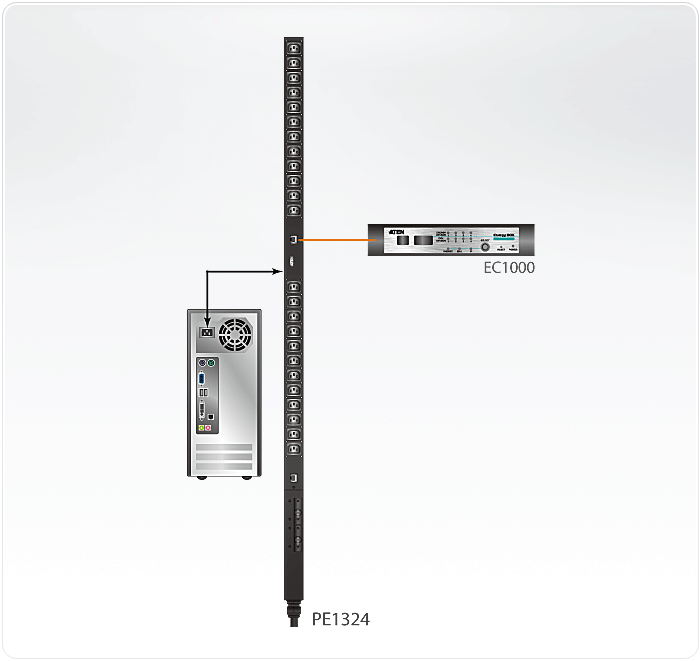

De PE1324 Energy PDU bevat 24 wisselstroomuitgangen en is beschikbaar in IEC- of NEMA-socketconfiguraties. De PE1324 Energy PDU biedt een ruimtebesparend 0U-design waardoor het verticaal kan worden gemonteerd op de buitenkant van een rack, wat resulteert in efficiënter gebruik van de ruimte in de serverruimte, terwijl 24 wisselstroomstopcontacten worden geleverd.
| Function | PE1216A | PE1216B | PE1216G | |
| Power Outlets | Direct | 16 x NEMA 5-15R | 16 x IEC C13 | 16 x IEC C13 |
| Connectors | Inlet | 1 x IEC60320 C20 | ||
| Energy Sensor Port |
1 x RJ-45 Female | |||
| Nominal Input Power | 100-120V~, 50/60Hz, 20A(Max), 16A( UL derated) |
100-240V~, 50/60Hz, 20A(Max), 16A( UL derated) |
100-240V~, 50/60Hz,16A(Max) |
|
| Nominal Output Power | 100-120V~, 50/60Hz Per Outlet 15A (Max), 12A( UL de-rated) Total : 20A(Max), 16A( UL de-rated) | 100-240V~,50/60Hz Per outlet 15A (Max), 12A( UL de-rated) Total : 20A(Max), 16A( UL de-rated) | 100-240V~,50/60Hz Per Outlet 10A (Max) Total : 16A(Max) | |
| Environment | Operating Temp. | 0 - 50°C | ||
| Storage Temp. | -20 - 60°C | |||
| Humidity | 0-80% RH Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 1.31 kg | 1.31 kg | 1.23 kg | |
| Dimensions ( L x W x H ) |
73.00 x 4.40 x 4.40 cm | 68.00 x 4.40 x 4.40 cm | ||
