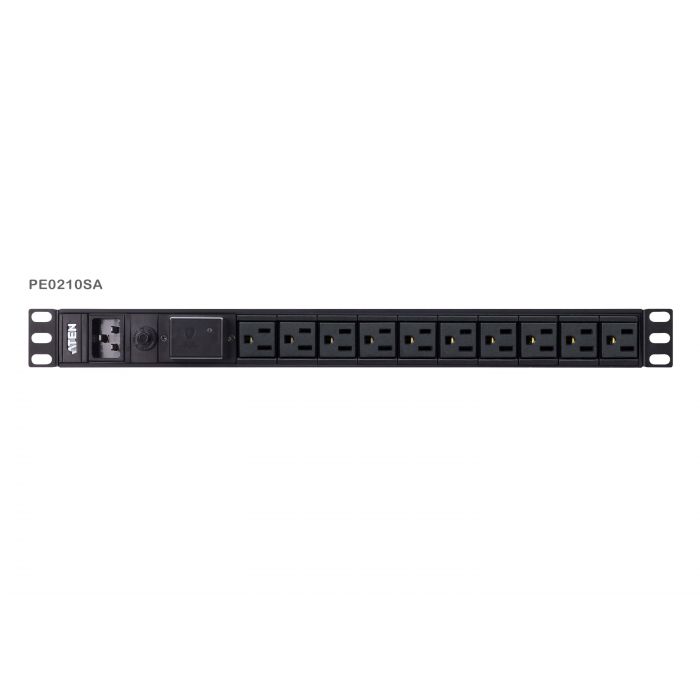

De PE0210S van Aten is een stroomverdeeleenheid (PDU) met 10 stopcontacten en voor 1U rekmontage die IEC- en NEMA-output levert. Het verdeelt de stroom naar 10 stopcontacten vanuit een enkele stekker met ongefilterde elektrische doorvoer. De PE0210S biedt ook overspanningsbeveiliging en voorkomt schade aan uw apparatuur door overspanning en stroompieken. De geïntegreerde overspanningsbeveiliging is voorzien van een led-indicator, die de status van uw apparatuur aangeeft.
| Function | PE0210SA | PE0210SB | PE0210SG |
| Electrical | |||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC | 100-240 VAC |
| Maximum Input Current | 20A Max (UL de-dated 16A Max) | 20A Max (UL derating 16A Max) | 16A (Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Input Connection | For A Plug: NEMA L5-20P For A2 Plug:NEMA 5-20P | NEMA L6-20P | For G Plug: IEC-320 C20 For Z Plug: Chinese 16A |
| Input Power | 2400VA(Max); 1920VA(UL de-rated) | 4800VA(Max); 3840VA(UL de-rated) | 3840VA(Max) |
| Outlet Type | (10) NEMA 5-20R | (10) IEC 320 C13 | (10) IEC 320 C13 |
| Maximum Output Current (Outlet) | 20A Max (UL de-dated 16A Max) | 15A Max (UL derating 12A Max) | 10A (Max) |
| Maximum Output Current (Bank) | 20A Max (UL de-dated 16A Max) | 20A Max (UL derating 16A Max) | 16A (Max) |
| Maximum Output Current (Total) | 20A Max (UL de-dated 16A Max) | 20A Max (UL derating 16A Max) | 16A (Max) |
| OPD(Overcurrent Protection Device) | Yes | Yes | Yes |
| Physical Properties | |||
| Dimensions (L x W x H) | 48.20 x 4.44 x 4.50 cm (18.98 x 1.75 x 1.77 in.) | 48.20 x 4.44 x 4.50 cm (18.98 x 1.75 x 1.77 in.) | 48.20 x 4.44 x 4.50 cm (18.98 x 1.75 x 1.77 in.) |
| Weight | 0.67 kg ( 1.48 lb ) | 0.67 kg ( 1.48 lb ) | 0.67 kg ( 1.48 lb ) |
| Power Cord Length | 10ft(12#) | 10ft(12#) | 10ft(3*2.5mm2) |
| Environmental | |||
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m | 3000m | 3000m |
| Compliance | |||
| EMC Verification | FCC Class A | FCC Class A | - |
| Safety Verification | By Request | By Request | CE,LVD |
