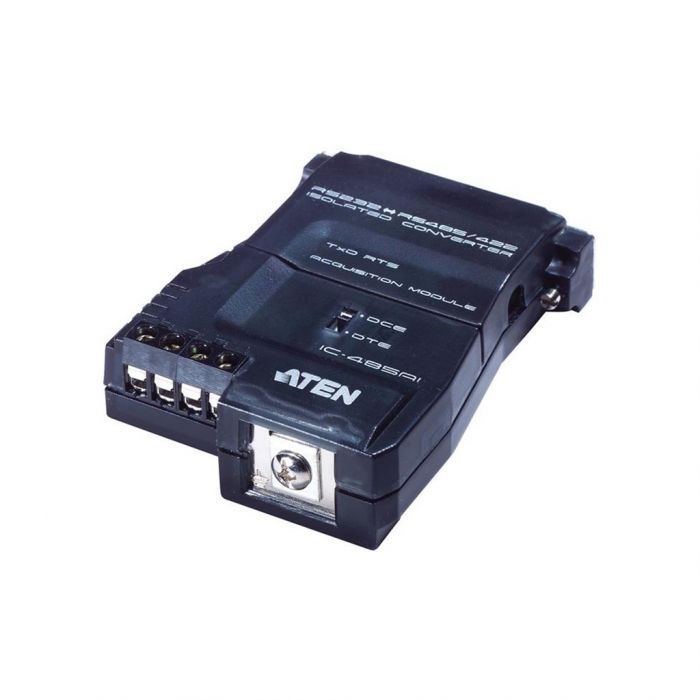

Aten IC485AI RS-232 to RS-482/RS-485 Bidirectional Converter

Name: Aten IC485AI RS-232 to RS-482/RS-485 Bidirectional Converter
Brand: Aten
SKU: IC485AI
Price: 113.95 EUR
Availability: InStock

€ 113,95 € 94,17

Levertijd: 3-5 werkdagen

RS232 - DB-25 Female, RS-485 - 422 Four Terminal Block, RJ11

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Omschrijving

IC485AI is a 2-way converter converting RS-232 signals into RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). Its built-in RS-485 automatic flow and direction monitoring function can suppress signal surge.
Voor meer informatie.

Eigenschappen

	Automatic internal RS-485 bus supervision.
	No external flow control signals for RS-485 required.
	Transient suppression on RS-485 data lines.
	DCE / DTE selectable.
	Point-to-Point; Multidrop; and Simplex operating modes.
	Four wire full duplex; two wire half duplex.
	LEDs for easy status monitoring.
	Minimum 2000V isolation protection.
	Compact size• Cable distance of up to 1200m (4000 ft.).
	Supports baud rates up to 115.2kbps.
	OS Support: Windows 2000, Windows XP

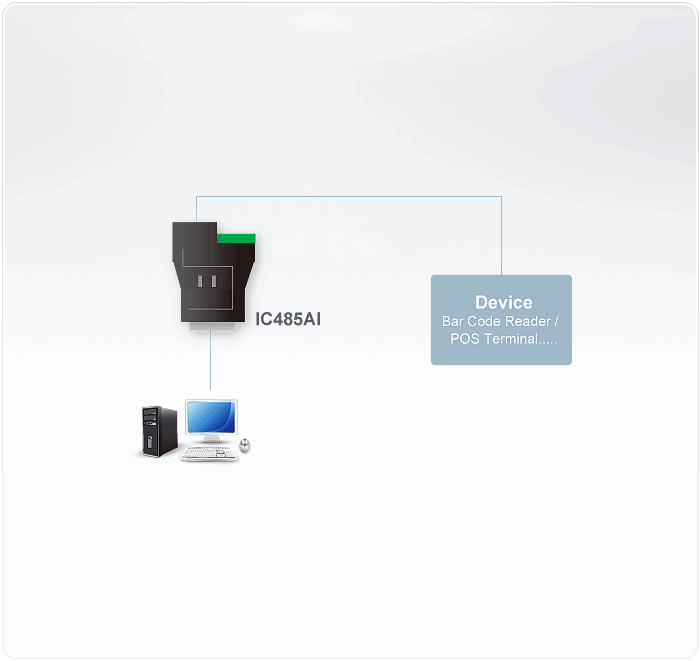

Diagram

inhoud

• 1x Industry Control
• 1x 0AD6-1709-03EG Power Adapter
• 1x User Instructions

Specifications

Connectors		1 DB-25 Female (RS-232)
		RS-485 / RS-422 Four Terminal Block
		Grounding Tab
Switches	SW1	DCE, DTE
Switches	SW2	Segment 1~3: Baud Rate; Segment 4: Reserved; Segment 5~6: Data Format (bits); Segment 7~8: RS-422 / RS-485 Operating Mode
Power Consumption		DC9V, 0.9W (max.)
Signal Range		1200 m [4000'] (max.)
Data Rate		Up to 100 Kbps Under 1200 m [4000']
Environment	Operating Temperature	0 ~50?C
	Storage Temperature	-20 ~ 60?C
	Humidity	0~80% RH, NC
Physical Properties	Housing	Plastic
	Weight	60 g
	Dimension ( L x W x H )	5.40 x 7.45 x 1.85 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
