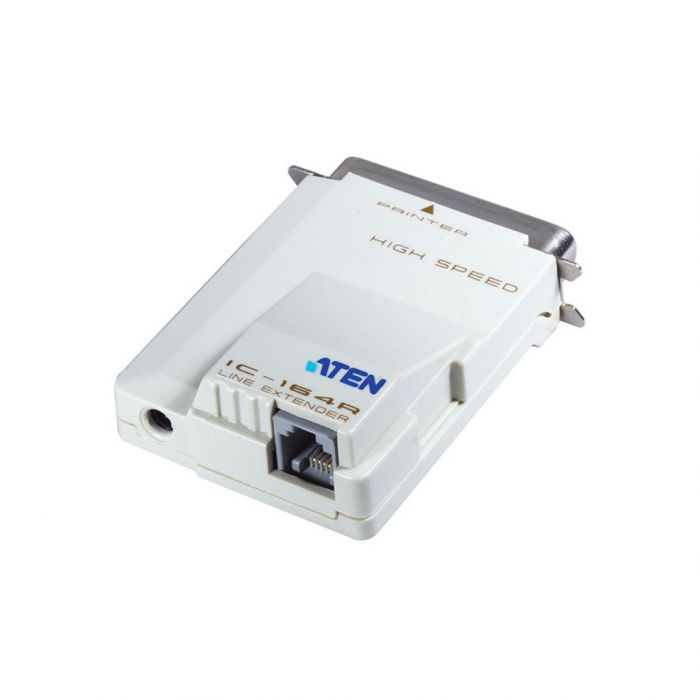

Aten IC164T/R Non-Powered / High Speed Parallel Data Extender

Name: Aten IC164T/R Non-Powered / High Speed Parallel Data Extender
Brand: Aten
SKU: IC164
Price: 36.95 EUR
Availability: InStock

€ 36,95 € 30,54

Direct leverbaar

IC164T- 1xDB 25 Male,IC164R- 1xDB 36 Male, Both with 1xRJ11 Jack

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Omschrijving

The IC164 parallel signal extender can extend the distance between your parallel peripherals and the PC up to 400m, thus allowing you to control parallel peripherals from far away. The local unit and remote unit of IC-164 are connected with the RJ-11 cable, which is easy and time-saving to install.
Voor meer informatie.

Eigenschappen

	No external power required.
	Easy to install and operate.
	Compact size.
	Cable distance of up to 400m (1300').
	OS Support: Windows 2000, Windows XP

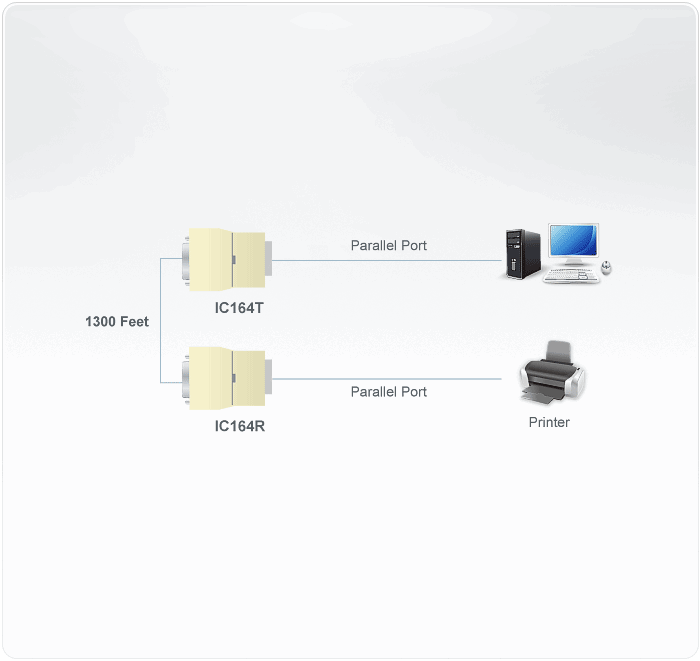

Diagram

inhoud

• 1x R511 cable (8 m)

Specifications

Function		IC-164T (Transmitter)	IC-164R (Receiver)
Connectors		1 DB x 25 Male	1 x C-36 Male
		1 x RJ-11 Jack Female
Cable Type		4 Wire Telephone Line
Cable Length		400 m [1300'] (Max.)
Data Transfer Speed		21 Kbytes/Sec.
Power (Optional)		DC 9V, 0.4W (Min.)
Environment	Operating Temp.	0 ~50?C
	Storage Temp.	-20 ~ 60?C
	Humidity	0~80% RH, Non-condensing
Physical Properties	Housing	Plastic
	Weight	45 g	50 g
	Dimension ( L x W x H )	8.20 x 5.40 x 2.60 cm	7.60 x 5.30 x 2.10 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
