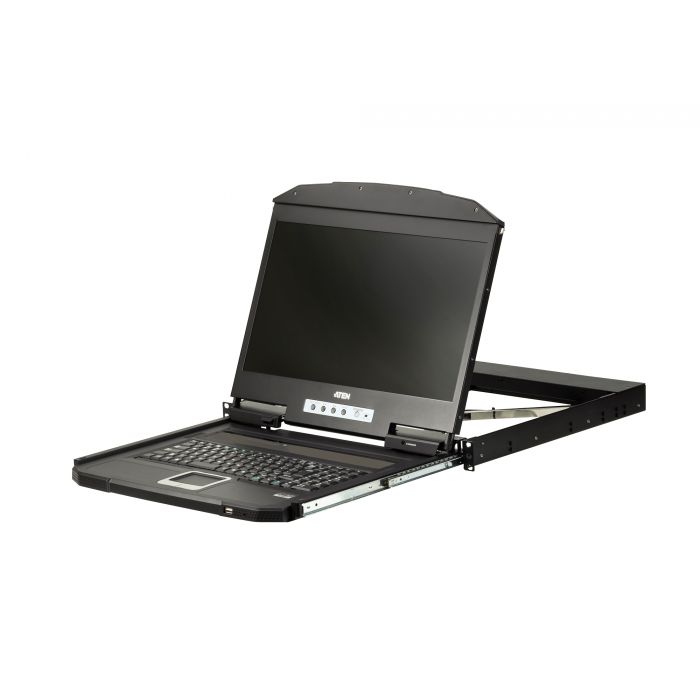

De CL3700 USB HDMI LCD Console is een korte diepte enkelvoudige rail LCD KVM console met een 18,5" breedbeeld LCD beeldscherm met LED-achtergrondverlichting en een geïntegreerd toetsenbord en touchpad. Het korte diepte ontwerp past op alle 19”
| Function | CL3700NW | CL3700NX |
| Computer Connections | ||
| Direct | 1 | 1 |
| Console Selection | Hotkey | Hotkey |
| Connectors | ||
| KVM Ports | 1 x HDMI Female 1 x USB Type B Female | 1 x HDMI Female 1 x USB Type B Female |
| Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) | 1 x 3.5mm Audio Jack Female (Black) |
| Power | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 |
| External Console Ports | 1 x HDMI Female 2 x USB Type A Female | 1 x HDMI Female 2 x USB Type A Female |
| External Mouse / Peripheral | 1 x USB Type A Female (Front) | 1 x USB Type A Female (Front) |
| Switches | ||
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Power | 1 x Rocker Switch | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton | 1 x LED Pushbutton |
| LEDs | ||
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| LED Illumination Light | 1 x LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | ||
| LCD Module | 18.5 TFT-LCD | 18.5" TFT-LCD |
| Resolution | 1920 x 1080 @ 60 Hz | 1366 x 768 @ 60Hz |
| Response time | 20 ms | 5 ms |
| Viewing Angle | 178° (H), 178° (V) | 170° (H), 160° (V) |
| Pixel Pitch | 0.213 mm x 0.213 mm | 0.3 mm x 0.3 mm |
| Support Color | 16.77M colors | 16.77M colors |
| Contrast Ratio | 1000 : 1 | 700 : 1 |
| Luminance | 350 cd/m² | 200 cd/m² |
| Video | ||
| Input Video Resolution | up to 1920 x 1200 @ 60Hz; 1920 x 1080 @ 60 Hz, DDC2B | up to 1920 x 1200 @ 60Hz; 1366 x 768 @ 60 Hz, DDC2B |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Maximum Input Power Rating | 100–240 V AC, 50/60 Hz, 1 A | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | AC110V:23.3W:124BTU AC220V:23.9W:127BTU | AC110V:13.6W:79BTU AC220V:13.5W:78BTU |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal + Plastic | Metal + Plastic |
| Rail Type | Single Rail | Single Rail |
| Weight | 9.01 kg ( 19.85 lb ) | 9.03 kg ( 19.89 lb ) |
| Dimensions (L x W x H) | 48.06 x 47.70 x 4.28 cm (18.92 x 18.78 x 1.69 in.) | 48.06 x 47.70 x 4.28 cm (18.92 x 18.78 x 1.69 in.) |
| Body Dimensions(L x W x H) | 44.92 x 43.00 x 4.28 cm | 44.92 x 43.00 x 4.28 cm |
| Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. | Body Dimensions exclude I/O ports, handles, and mounting brackets. |
