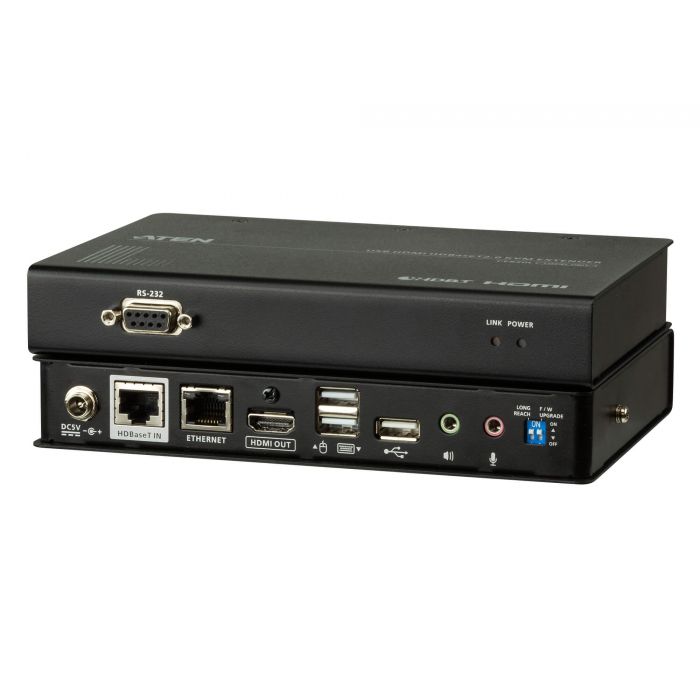

De ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Verlenger integreert de nieuwste HDBaseT™ 2.0 technologieën om 4K HDMI video, stereogeluid, USB, Ethernet en RS-232 signalen tot 100 meter te leveren met behulp van enkele Cat6 / 2L-2910 Cat 6 kabel. De HDBaseT™ 2.0 garandeert de meest betrouwbare transmissie op de markt en maakt het mogelijk om de lange afstand te overbruggen, waardoor full HD 1080P-signalen tot 150 meter worden verlengd. Met een eenvoudige kabelinstallatie die verschillende signalen ondersteunt, is de CE820 ideaal voor toepassingen waar gemakkelijke toegang op afstand vereist is – zoals transportcontrolecentra, medische faciliteiten, industriële magazijnen en uitgebreide werkstations.
* De computer moet Wekker ondersteunen opdat deze functie werkt
| Function | CE820L | CE820R |
| Connectors | ||
| Console Ports | N/A | 1 x HDMI Female (Black) 3 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) |
| KVM Ports | 1 x HDMI Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Orange) | 1 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Pushbuttons | ||
| Wakeup button | N/A | 1 x Push button |
| Video | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Power Consumption | DC5V:2.87W:13BTU | DC5V:5.37W:40BTU |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.63 kg ( 1.39 lb ) | 0.65 kg ( 1.43 lb ) |
| Dimensions (L x W x H) | 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.) | 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
