Aten AS248R Printer Network

€ 35,95 € 29,71
Levertijd: 3-5 werkdagen
At Print Side; Input - 2 x 6P4C Jacks, Output - 1 x Centronics C-36 Male

Omschrijving

The Flash/Net™ system is a printer sharing network in which up to 24 computers (as many as 64 when adapters are used), can easily share up to 8 printers using inexpensive 4-wire straight-through RJ-11 cabling in a Bus, Star, or Tree topology. Printers are selected either with a manual controller or by software. With a throughput of up to 22 Kbytes per second (making it faster than any similar network), this advanced, power-free printer network eliminates the need for multiple auto switches and heave, tangled, cables. Easy installation and ease of operation make Flash/Net™ suitable for users of all levels. Simply plug a transmitter unit into the PC's parallel port; a receiver unit into the printer; connect the units with 4-wire straight-through RJ-11 cabling; and you are ready to go. Transmitters and receivers can be daisy chained allowing up to 24 PCs (as many as 64 with adapters) to connect with up to 8 printers.

Voor meer informatie.

Eigenschappen


At least 24 PCs can share 8 Centronics printers with the AS248 network by means of 4-wire phone lines.
Simultaneous printing capability.
Works in bus/star/tree topologies.
Data Transfer rate: 22 Kbytes per second.
Cable distance of up to 366m (1200').
Easy Installation.
Selects printers by software code operation.
No external power required.

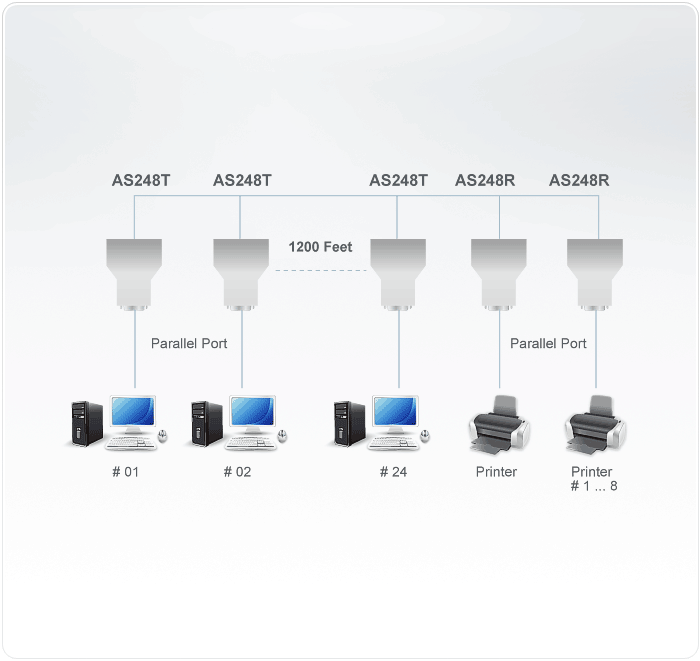

Diagram

Specifications

Power Consumption DC 9V 5mA
Cable Length 1181 ft. (360 m.)
Input Arbitration First come first served
Timeout selection 5 ~ 60 seconds
Connectors (Input) 1 x DB-25 Male
Connectors (Output) 2 x 6P4C Jacks
Unit Dimensions
Length 1181 ft. (360 m.)
Unit Package Dimensions
Width 5.5 in.
Height 5.75 in.
Depth 2.25 in.
Master Carton
Width 18.0 in. (45.7 cm)
Height 8.5 in. (21.6 cm)
Depth 22.0 in. (55.9 cm)
Master Carton Qty. 20
Weight
Master Carton Wt. 16.5 lb. (7.5 kg)
Unit Pack Wt. 0.65 lb.
• * The specification and pictures are subject to change without notice.
• * All trademarks and logos are the properties of their respective holders.
