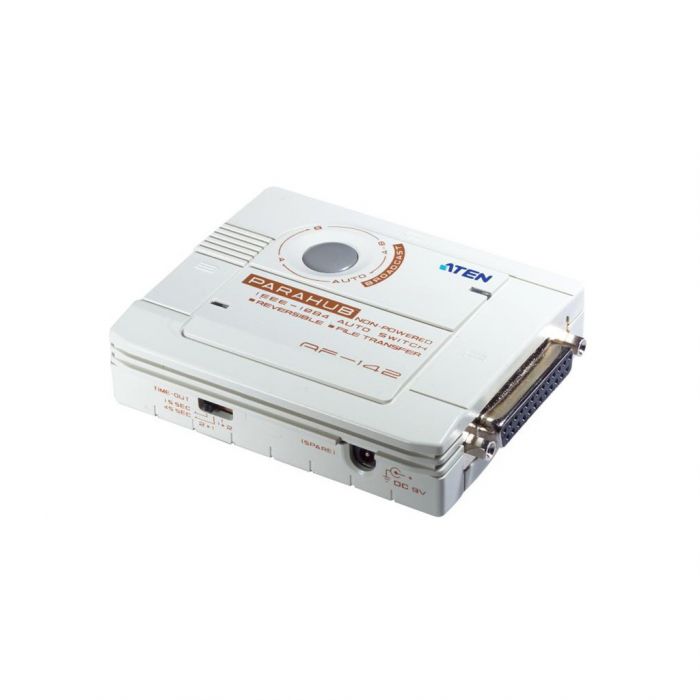

AF142 is a FIFO printer and data switch for 2 computers to share 1 printer. It also supports 2-way operation, i.e. 1 PC to 2 printers, and allows users to transfer files to other PCs without additional cable connections. For more information.
Eigenschappen
Shares peripherals between computers. Reversible operation for 1-in-2-out or 2-in-1-out. Transfers files between computers. Supports IEEE-1284 nibble mode. Print job management is first come, first serve. Supports broadcast mode. Selects ports by button and software code operation. Non-Powered operation. HP Laser Jet, Canon, Epson and NEC Compatible. OS Support: Windows 2000, Windows XP
Diagram
inhoud
1x Auto Switch
1x User Manual
1x 3.5" Floppy
Specifications
Connectors
3 x DB-25 Female
LEDs
Printer Activity
2 (Red)
Port Selection
Input
(2 > 1) Auto / Manual PC Selection
Output
(1 > 2) Software / Manual Printer Selection
Input Arbitration
First Come First Served (2 > 1)
File transfer
Yes (2 > 1)
Broadcast
Yes (1 > 2)
Timeout Selection
15, 45 Seconds (2 > 1)
Power Consumption
DC 9V, 0.9W (Max.)
Signal Range
6 m (Max)
Environment
Operating Temp.
0 ~50?C
Storage Temp.
-20 ~ 60?C
Humidity
0~80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.15 kg
Dimension( L x W x H )
10.20 x 8.50 x 2.60 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
