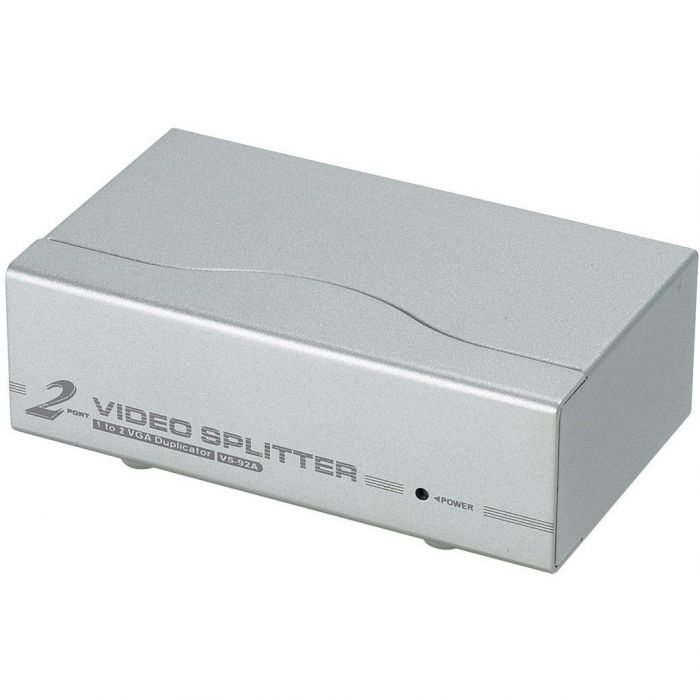

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 65 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
One video input to 2 video outputs Cascadable to 3 levels - provides up to 8 video signals Supports 350 MHz bandwidth Long-distance transmission - up to 65 m Superior video quality - 1920 x 1440@60Hz DDC, DDC2, DDC2B Compatible (Port 1 only) Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors All metal casing

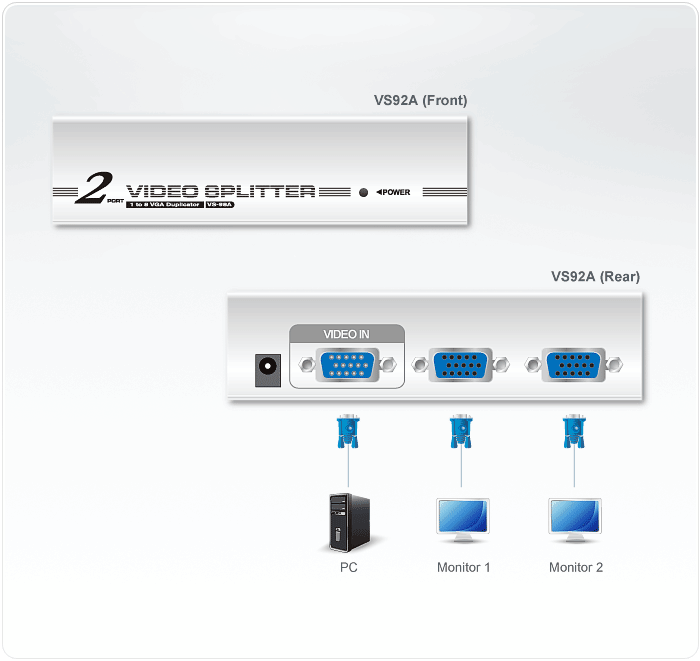

Diagram
Content
• 1x 2-Port Video Splitter
• 1x 0AD6-1909-03EG Power Adapter
• 1x User Instructions
Specifications
Display Connections
2/8*
Connectors
Video In
1 x HDB-15 Male (Blue)
Video Out
2 x HDB-15 Female (Blue)
Power
1 x DC Jack
LEDs
Power
1 (Orange)
Video
Resolution
1920 x 1440 @ 60Hz
Bandwidth
350 MHz
Signal Range
65 m
Power Consumption
DC9V, 1.24W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.42 kg
Dimensions (L x W x H)
13.00 x 7.50 x 4.50 cm
* Display connections in three-level cascade
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
