The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Features
Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports up to 340MHz bandwidth for high performance video
Signaling rates up to 3.4 Gbits in support of 1080p display
Plug-and-play – no software installation required

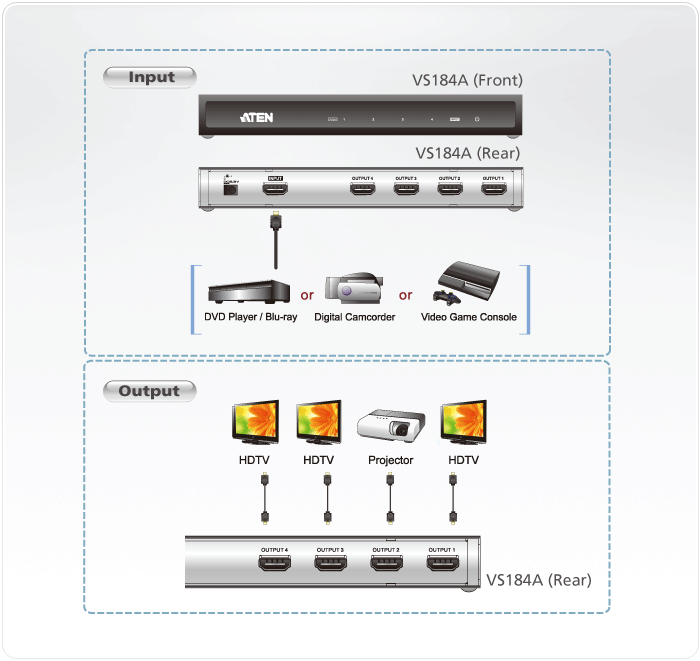

Diagram
Content
1 x VS184A 4-Port HDMI Splitter
1 x 0AD6-1605-24EG Power Adapter
1 x 2L-7D02H HDMI Cable
1 x User Instructions
Specifications
Display Connections
4
Connectors
Device
HDMI In
1 x HDMI Type A Female (Black)
Display
HDMI Out
4 x HDMI Type A Female (Black)
Power
1 x DC Jack
LEDs
Power
1 (Orange)
Input
1 (Green)
Output1
1 (Green)
Output2
1 (Green)
Output3
1 (Green)
Output4
1 (Green)
HDMI Resolution
4k x 2k, 1080p
Power Consumption
DC5.3V, 4.6W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0–80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.47 kg
Dimensions (L x W x H)
20.00 x 8.00 x 2.50 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
