VS164 KVM Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Connects computers with DVI graphics to multiple DVI compatible monitors or projectors. Fully compliant with DVI-Digital and DVI-Analog. Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors. Speaker enabled for audio enjoyment. Cascadable to 3 levels - provides up to 64 video signals. Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m. Installs in minutes. Maintains highest single link video resolution (up to 1920 x 1200). DDC, DDC2, DDC2B Compatible (Port 1 only). HDCP Compliant. OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

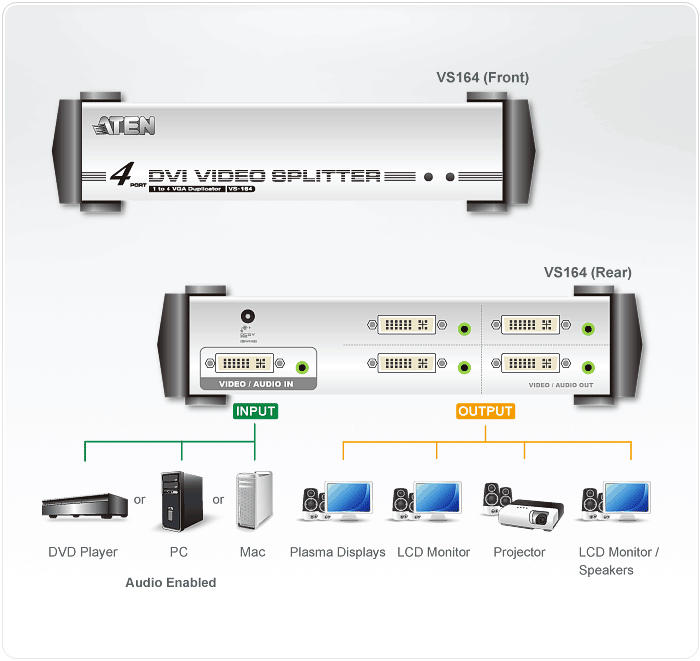

Diagram
Content
• 1x 4-Port DVI Video Splitter
• 1x 0AD6-1605-24EG Power Adapter
• 1x User Instructions
Specifications
Computer Connections
4
Connectors
Video In
1 x DVI Female (White)
Audio In
1 x Mini Stereo Jack Female (Green)
Video Out
4 x DVI Female (White)
Audio Out
4 x Mini Stereo Jack Female (Green)
Power
1 x DC Jack (Black)
LEDs
Online
1 (Orange)
Selected
1 (Green)
Resolution
1920 x 1200 @60 Hz
Signal Range
Up to 5m (15')
Power Consumption
DC5.3V,4.8W (Max.)
Environment
Operating Temp.
0-50?C
Storage Temp.
-20-60?C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.72 kg
Dimensions ( L x W x H )
21.00 x 8.70 x 5.50 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
