VS132 video splitters provides video input signal to 2 video outputs each at 350 MHz after duplication. Users can boost video signals from the video gain knob within a transfer range up to 65m. Voor meer informatie.
Features
One video input to 2 video outputs. Cascadable to 3 levels-provides up to 8 video signals. Supports up to 350 MHz bandwidth. Long distance transmission - up to 65m (210'). High video resolution - 1920 x 1440. DDC, DDC2, DDC2B Compatible (Port 1 only). Supports VGA, XGA, SVGA, UXGA and multisync monitors. OS Support: Windows 2000, Windows XP, Linux, Mac and Sun Compact design with convenient topside connection, lays flat on a desktop or mounts on the wal

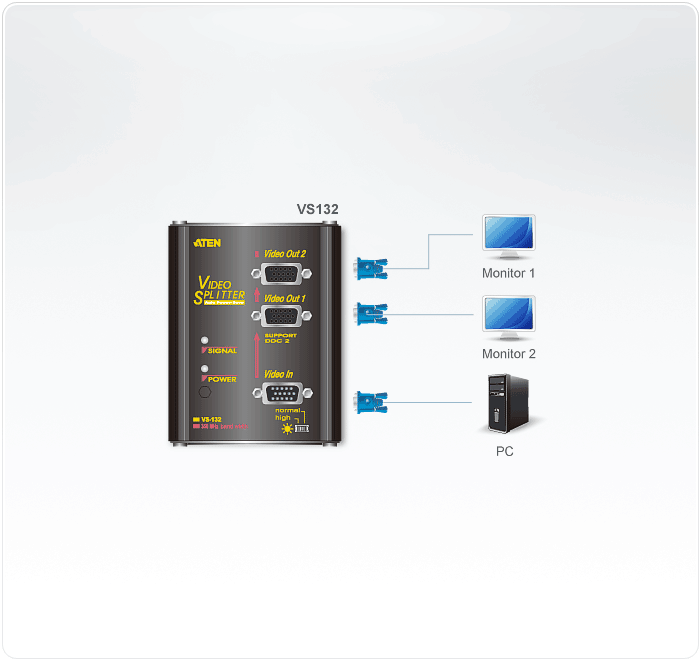

Diagram
Content
• 1x 2-Port Video Splitter
• 1x 0AD6-1605-09EG Power Adapter
• 1x User Instructions
Specifications
Display Connections
2
Connectors
Video In
1 x HDB-15 Male (Blue)
Video Out
2 x HDB-15 Female (Blue)
Power
1 x AC Jack (Black)
Switches
Video Gain
1 x Knob
LEDs
Power
1
Video Bandwidth
350 MHz
Video
1920 x 1440 @ 75Hz
Signal Range
Up to 65m (210')
Power Consumption
AC9V, 1.08W (Max.)
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.19 kg
Dimensions (L x W x H)
10.40 x 7.80 x 2.80 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
