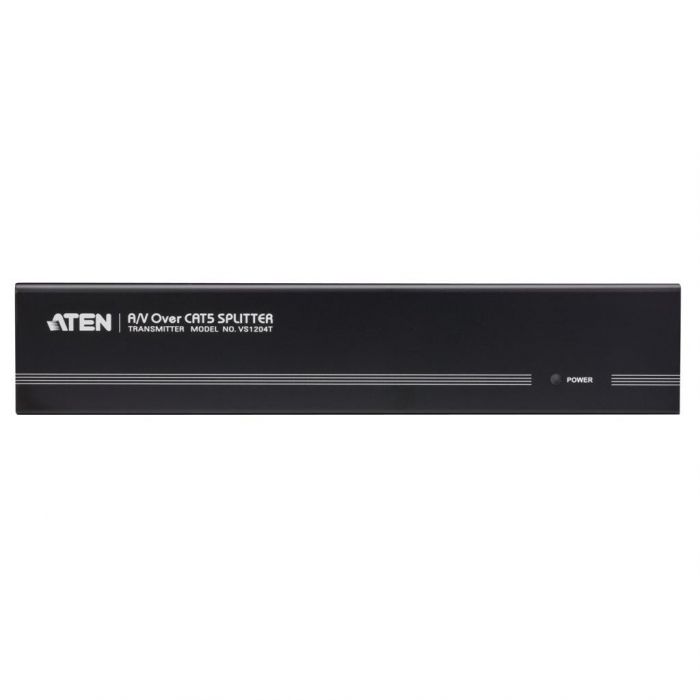

The VS1204T A/V Over Cat 5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays. Connect to an ATEN A/V Over Cat 5 Receiver* via Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the single input source. The VS1204T A/V Over Cat 5 Splitter is ideal for any professional A/V installation that requires multimedia content to delivered to multiple destinations. Compatible Receiver Units: VE170R A/V Over Cat 5 Receiver VE170RQ A/V Over Cat 5 Receiver with Deskew Voor meer informatie.
Features
• One audio/video input to 4 audio/video outputs via Cat 5e cable • Supports local display + 4 remote displays • Supports up to 225 MHz bandwidth • Uses Cat 5e cable to extend displays up to 300 m • Superior video quality – up to 1920 x 1200@60Hz • Audio enabled (mono) • Built-in 8KV/15KV ESD protection • Rack-mountable

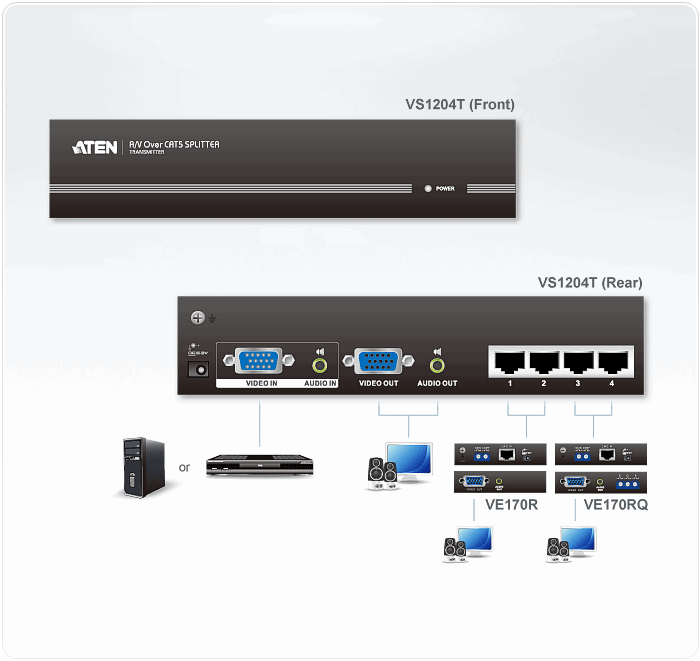

Diagram
Content
• 1x VS1204T A/V Over Cat 5 Splitter
• 1x 0AD6-1605-24EG Power Adapter
• 1x Mounting Kit
• 1x Foot Pad Set (4 pcs)
• 1x User Instructions
Specifications
Connectors
Video In
1 x HDB-15 Male (Blue)
Video Out
1 x HDB-15 Female (Blue)
Audio In
1 x Mini Audio Jack Female (Green)
Audio Out
1 x Mini Audio Jack Female (Green)
Unit to Unit
4 x RJ-45 Female
Power
1 x DC Jack
LEDs
Power
1 (Green)
Video
1920x1200 @ 60Hz
Cable Distance
300 m
Power Consumption
DC5.3V, 1.33 W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.59 kg
Dimensions ( L x W x H )
20.00 x 7.45 x 4.20 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
