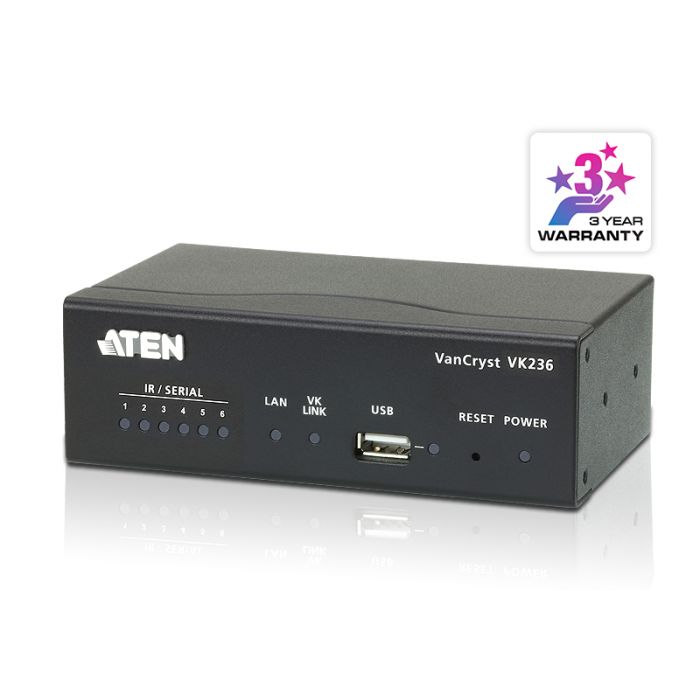

ATEN VK236 6-Port IR/Serial Expansion Box

€361.12 €298.45
Delivery time: 3-5 working days
6-Port IR/Serial Expansion Box

Description

The VK236 6-Port IR/Serial Expansion Box provides six additional IR/Serial ports for a flexible expansion of the ATEN Control System.
This allows users to control additional IR/serial devices in an environment where more devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

Features

  • Provides 6 IR/Serial ports to expand the ATEN Control System
  • Up to eight VK236 expansion boxes can be added to a single VK2100 Control Box
  • Flexible Deployment: Connects to a VK2100 Control Box via an Ethernet connection
  • ID Switch pairs the VK236 with a controller to instantly configure the network settings
  • Supports Power over Ethernet (PoE) or DC power supply
  • Firmware upgradable through USB or Web interface

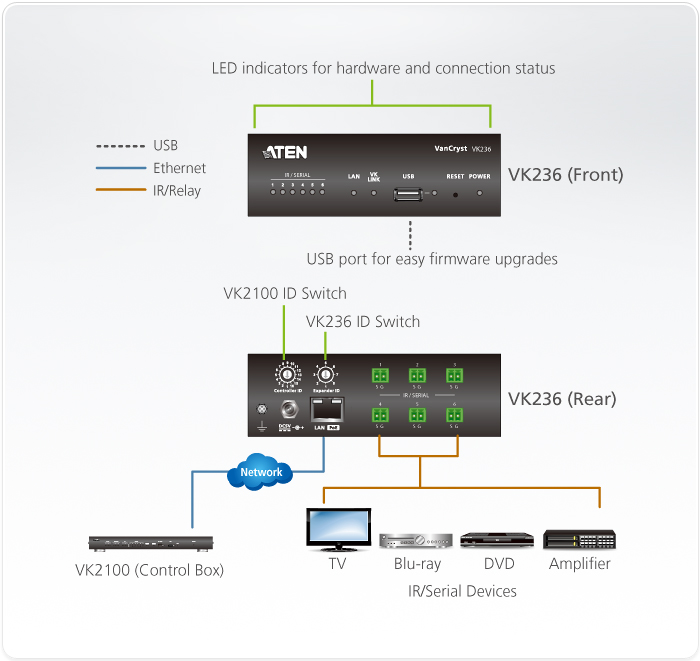

Diagram

Content

1x VK236 6-Port IR/Serial Expansion Box
1x Mounting Kit
6x Terminal Blocks
1x User Instructions

Specifications

Interfaces
IR/Serial6 x Programmable IR / Uni-directional RS-232 Port
6 x 2-Pole Terminal Block Connector
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 ( + - 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Switches
Controller ID1 x 16-segment Switch
Expander ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
USB1 x USB Type A (Firmware upgrade only)
Power ConsumptionDC5V:1.31W:17BTU
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.45 kg ( 0.99 lb )
Dimensions (L x W x H)13.00 x 7.58 x 4.20 cm
(5.12 x 2.98 x 1.65 in.)
