ATEN VK112EU 12-button keypad

€227.71 €188.19
Delivery time: 3-5 working days
12-BUTTON KEYPAD(EU,2 GANG)

Description

The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.

Features

  • Key pad - provides physical connection to the ATEN Control System
  • Fully customizable with 125 layout combinations of 6 to 12 buttons
  • System LED indicators for quick connection status check
  • Dual-color button LEDs for clear indication and visibility in dark environments
  • Easy ID paring with Control Box for Ethernet communication
  • Up to 8 keypads connect to a single Control Box for future scalability
  • Versatile modes support flexible behavior settings for each button
  • Intuitive web GUI for easy keypad configuration
  • Redundant power supplies with Power over Ethernet (PoE) and DC power
  • Button engraving service

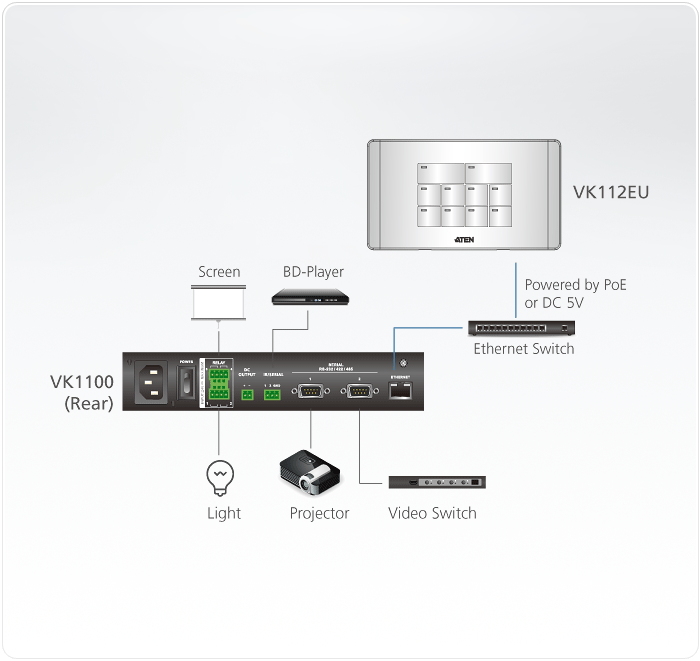

Diagram

Content

1x VK112EU Keypad
18x Buttons
1x Terminal Block
1x Faceplate
1x User Instructions

Specifications

Interfaces
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Keypad Layout6~12 buttons customizable in 125 keypad layouts
Switches
Controller ID1 x 16-segment Switch
Keypad ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
Power ConsumptionDC5V:1.25W:6BTU
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.14 kg ( 0.31 lb )
Dimensions (L x W x H)8.32 x 14.76 x 3.87 cm
(3.28 x 5.81 x 1.52 in.)
Faceplate Dimension (L x W x H)8.62 x 15.12 x 0.92 cm
(3.39 x 5.95 x 0.36 in.)
