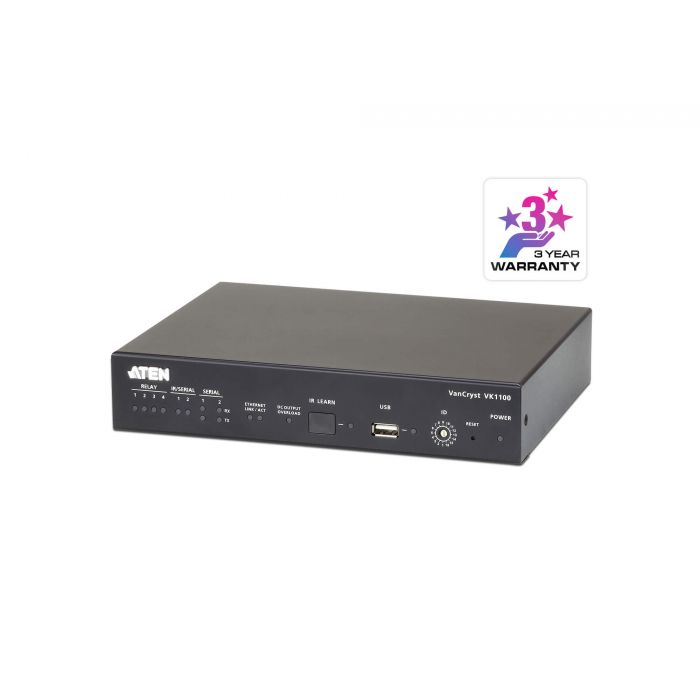

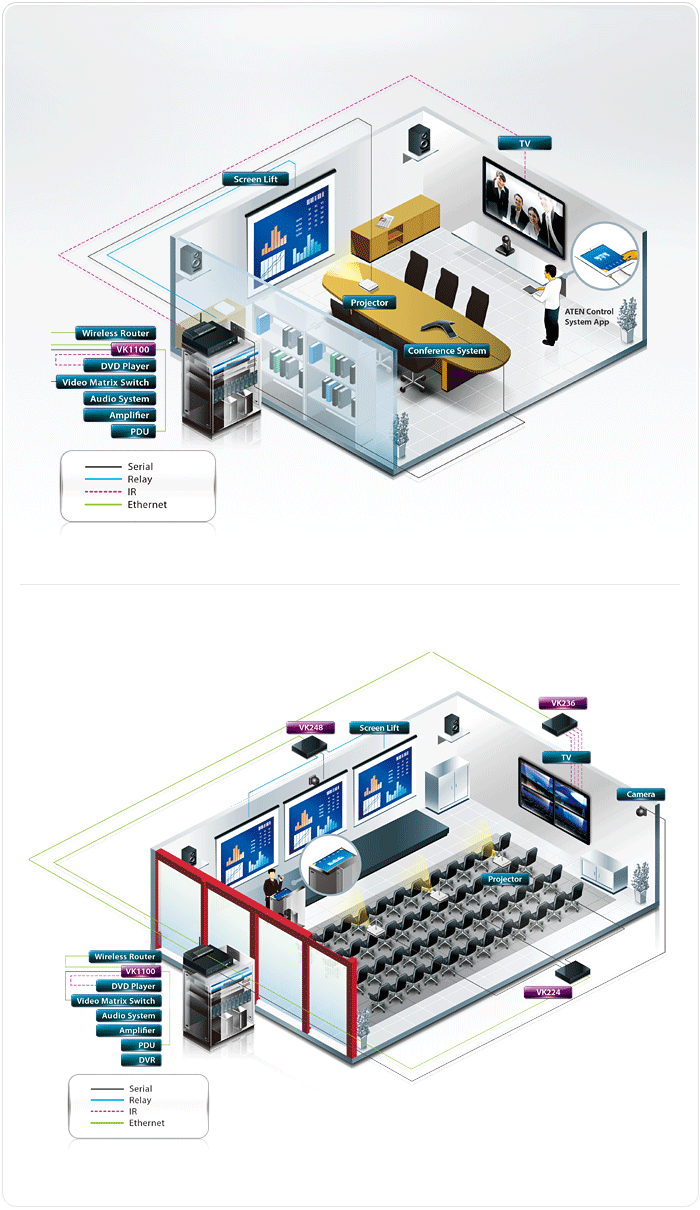

The ATEN Control System, incorporating the ATEN Control Box (VK1100 or VK2100), the ATEN Configurator (VK6000) and the ATEN Control System App, is a standard Ethernet-based management system that connects all the hardware devices in a room or large facility to provide centralized control directly and effortlessly via a mobile device and tablet computer. The VK1100 Compact Control Box works as the main controller that provides connectivity to all the hardware devices found in a room. After connecting the hardware, the VK6000 Configurator software provides simple setup of the devices with easy step by step configuration. The ATEN Control System App then connects you to the VK1100 Compact Control Box from any iOS, Android or Windows mobile device / tablet computer which empowers you with mobility to control all the hardware devices, in different rooms, whenever and however you like.
Interfaces | |
IR/Serial | • 2 x Programmable IR / Uni-directional RS-232 Port (1 x 3-Pole Terminal Block Connector); IR: – Carrier Frequency: 10KHz~455KHz; Serial: – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd |
Serial | • 2 x Programmable Bi-directional RS-232/422/485 Port (2 x DB9 Male Connector, configurable via pin assignments); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd; – Flow Control: None (default) RTS/CTS |
Relay | • 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A |
VDC | • 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector); • Power Supply: 12 VDC, 1A Max |
Ethernet | • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
USB | 1 x USB Type A |
Switches | |
Controller ID | 1 x 16-segment Switch |
Power | 1 x On/Off Switch |
IR Learning | 1 x IR Receiver LED |
Reset Button | 1 x Semi-recessed Pushbutton |
Power Consumption | AC110V:5.4W:87BTU AC220V:5.4W:87BTU |
Power | |
Maximum Input Power Rating | Internal Power: 100-240 VAC, 50-60 Hz |
Environmental | |
Operating Temperature | 0 – 50°C |
Storage Temperature | –20 – 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 1.19 kg ( 2.62 lb ) |
Dimensions (L x W x H) | 21.50 x 16.23 x 4.18 cm (8.46 x 6.39 x 1.65 in.) |
