Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
Delivers HDMI visually lossless high-quality video up to 1080p @ 60 Hz
Daisy Chaining - Connects multiple displays through a single port
Video Wall Support
Features
Lightweight Compression with Ultra-low Latency
Delivers visually lossless high-quality video up to 1080p
Ensures stunning quality video using ATEN advanced video lossless compression technology
EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
Limitless Scalability and Flexibility
Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*
No Complicated IP Setup
Simple configuration that requires no extensive IT experience or extra learning
Effortlessly switches among input sources via top panel pushbuttons
No Additional Server PCs or Software Required
Supports web GUI for device management
No additional server PCs, control boxes, or software/drivers are needed
Go Further For Less with Daisy Chaining*
Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.
* Use daisy chains to configure a video wall or expand the AV system hundreds of meters
Video Wall Support
Supports up to 8 x 8 video wall (64 displays)*
Supports horizontal or vertical (90° rotation) display orientation
Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI *Depends on your network architecture, please contact ATEN representatives for more details.
Embedded / De-embedded Audio Support
Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal
Multiple Control Channels
Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
Bi-directional IR Channel – IR transmission is processed one way at a time
RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer's feedback from their actual experience in using and installing the product(s). https://eservice.aten.com/eServiceCx/Common/FAQ/view.do?id=6276
Diagram
Content

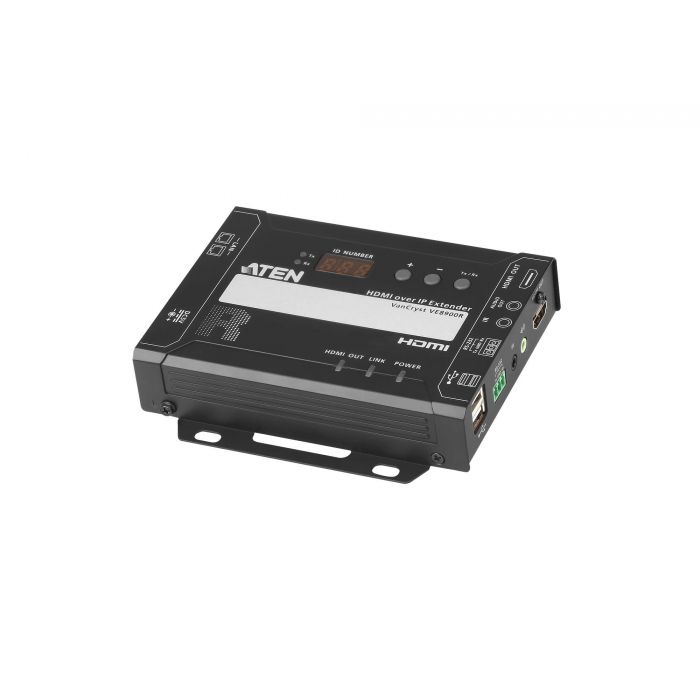

1x VE8900R HDMI over IP Receiver
1x RS-232 Terminal block
1x 0AD9-1F05-30EG 5V Power adapter
1x User instructions
Specifications
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Video
Max. Data Rate
Average: 150 ~ 500Mbps
Compliance
HDMI HDCP Compatible
Max. Resolutions / Distance
Up to 1080p@100m (Cat 5e/6, point to point)
Audio
Output
1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)
Control
IR
1 x Mini Stereo Jack Female (Black)
RS-232
Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
USB
2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection
3 x Push buttons
Connectors
Power
1 x DC Jack (Black) with locking
Power Consumption
DC5V:4.28W:41BTU
Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket
14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket
13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
