The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).
The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.
Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable Very long distance transmission – up to 600m HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits Superior video quality – up to 1080p@60Hz Uses one fiber optic cable to connect the local and remote units Supports wide screen formats Built-in 8KV/15KV ESD protection Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc. Supports bi-directional IR signal transmission, one way at a time Rack-mountable Hot-pluggable

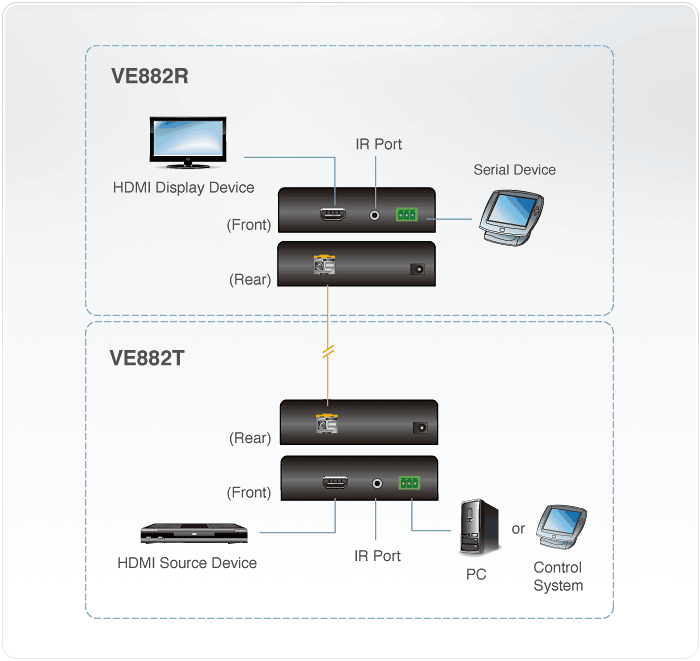

Diagram
Content
1x VE882T 1x VE882R 1x 2XRT-0004G IR Transmitter 1x 2XRT-0003G IR Receiver 1x Mounting Kit 2x 0AD6-1605-24EG Power Adapters 1x User Instructions
Specifications
Function
VE882T
VE882R
Connectors
HDMI In
1 x HDMI Type A Female (Black)
N/A
HDMI Out
N/A
1 x HDMI Type A Female (Black)
Optical In/Out
1 x LC Simplex Connector (SFP) (Bi-directional)
RS-232
1 x Terminal Block, 3 pole
IR
1 x mini stereo jack (Black)
Power
1 x DC Jack (Black)
Fiber Optics
Operating distance *
600 m with single mode (SM) fiber
Wavelength
1310/1550 nm for SM
Data rate
Single fiber: 1080p/60Hz (24-bits, 3.125G bps )
LEDs
Power/Link
1 (Green)
Power Consumption
DC5.3V, 5.6W
DC5.3V, 5.1W
Environment
Operating Temp.
0–50°C
Storage Temp.
-20–60°C
Humidity
0–80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.42 kg
Dimensions (L x W x H)
14.17 x 10.30 x 3.12 cm
* Note: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type,fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. * The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
