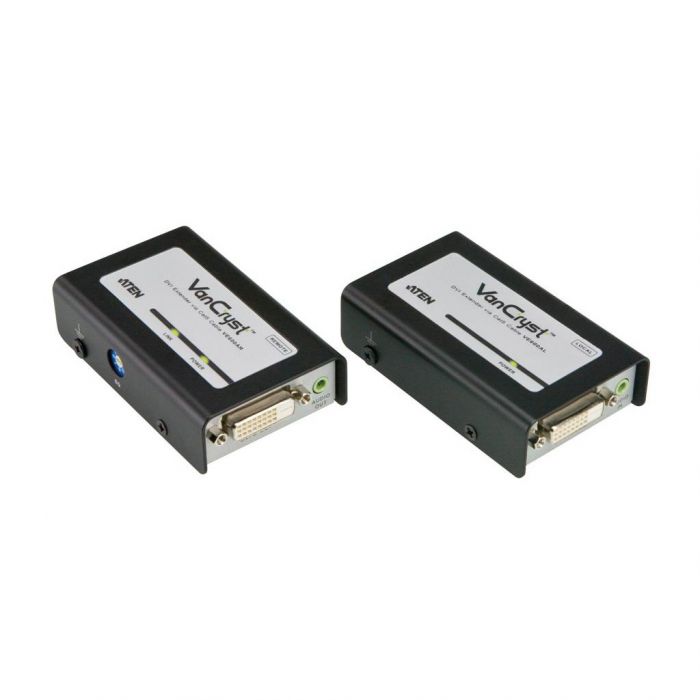

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.
Extends the distance between DVI source and DVI display device Long distance transmission – up to 60 m Uses Cat 5e cable to connect the local and remote units Features ATEN EDID technology that allows transmission over one Cat 5e cable Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m) Audio enabled Adjustable EQ compensation control Supports widescreen formats Rack mountable HDCP Compatible
Diagram
Content
• 1x VE600A DVI Extender with Audio Local Unit
• 1x VE600A DVI Extender with Audio Remote Unit
• 2x 0AD6-1605-09EG Power Adapters
• 1x Mounting Kit
• 1x User Instructions
Specifications
Function
VE600AL
VE600AR
Connectors
Video In
1 x DVI-D Female (White)
N/A
Video Out
N/A
1 x DVI-D Female (White)
Audio In
1 x mini stereo jack (Green)
N/A
Audio Out
N/A
1 x mini stereo jack (Green)
Power
1 x DC Jack
Unit to Unit
2 x RJ-45 Female (Silver)
Switch
EQ Switch
N/A
1 x 8-position switch
LEDs
Power
1 (Green)
Link
N/A
1 (Green)
Video
1080i @ 60 m; 1080p @ 40 m; VGA, SVGA, SXGA, UXGA, WUXGA (1920x1200)
Power Consumption
DC5.3V, 2.05W
DC5.3V, 1.45W
Environment
Operating Temp.
0–50°C
Storage Temp.
-20–60°C
Humidity
0–80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.35 kg
Dimensions (L x W x H)
9.13 x 5.60 x 2.40 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
