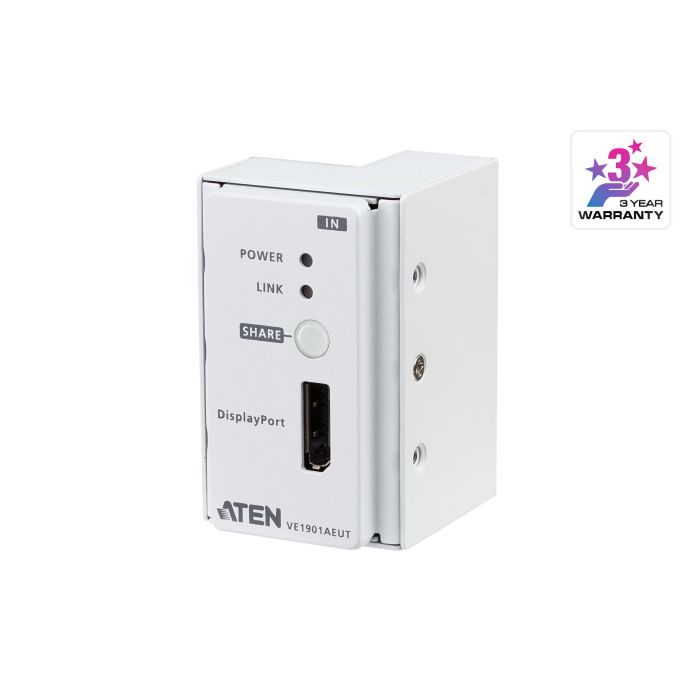

The ATEN VE1901AEUT DisplayPort HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize DisplayPort signal transmission with support of Deep Color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.
| Video Input | |
| Interfaces | 1 x DisplayPort Female (Black) |
| Impedance | 100Ω |
| Max. Distance | 3 m |
| Video | |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 297 MHz |
| Compliance | DisplayPort (Deep Color, 4K) HDCP Compliant |
| Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x DisplayPort Female (Black) |
| Control | |
| RS-232 Channel | 1 x Terminal Block (3 pole, TX/RX/GND, Green) |
| Contact Out | 1 x Terminal Block (2 pole, DO/GND, Green) |
| Connectors | |
| Unit To Unit | 1 x RJ-45 Female |
| Power | 1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH) |
| Power Consumption | DC5V:2.97W:14BTU/h POH:3.71W:17BTU/h |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0% - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.20 kg ( 0.44 lb ) |
| Dimensions (L x W x H) | 6.86 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in.) |
| Faceplate Dimensions (L x W x H) | 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.) |
