The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display. It uses dual power sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.
Converts analog VGA signals to DVI output Multiplatform support – Windows and Mac No software required – eliminates incompatibility and installation issues Compact and lightweight Supports dual power sources – VGA port or power adapter (in case the VGA port cannot provide sufficient power) Superior video quality – up to 1080P (HDTV) or 1920x1200 (PC) Automatically detects video input signals (indicated by LED) Smart Video Display – Image quality is optimized based on the available resolution of the output device Screen Position Button – screen position can be adjusted and restored for each output resolution

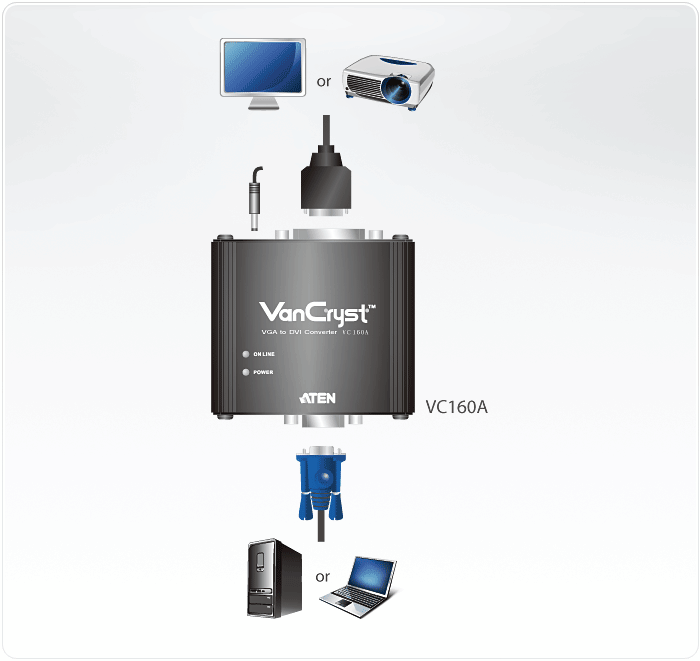

Diagram
Content
1x VC160A VGA to DVI Converter 1x Power Adapter 1x User Instructions
Specifications
Connectors
Video In
1 x HDB-15 Female (Blue)
Video Out
1 x DVI-D Female (White)
Power
1 x DC Jack
LEDs
Power
1 (Green)
Video Sync
1 (Blue)
Switches
Direction Adjustment
4 x Semi-recessed Pushbuttons
Memory
1 x Semi-recessed Pushbutton
Video
Up to 1080P (HDTV) or 1920 x 1200 @ 60 Hz (PC)
Power Consumption
DC 5.3V, 2.8W
Environment
Operating Temp.
0 – 50°C
Storage Temp.
–20 – 60°C
Humidity
0 – 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.15 kg
Dimensions ( L x W x H )
7.90 x 7.81 x 2.43 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
