ATEN US3344I 4-Port USB 3.1 Gen1 Industrial Switch

€169.48 €140.07
Item in stock
4-Port USB 3.1 Gen1 Industrial Switch

Description

4 x 4 USB 3.1 Gen 1 Industrial Hub Switch

Features

  • Enables four computers to share USB peripheral up to four devices
  • Supports USB 3.1 Gen1 specification, maximum data transfer rates up to 5Gbps
  • Multiplatform support - Windows, Mac and Linux
  • LED indicators display port focus
  • Metal mechanical cassis with wall mountable designs
  • Support aftermarket USB M2 screw locking cable
  • Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block
  • Hot pluggable
  • Support DC 9-24V power input by terminal block
  • Support Battery Charging V1.2 and over current protection

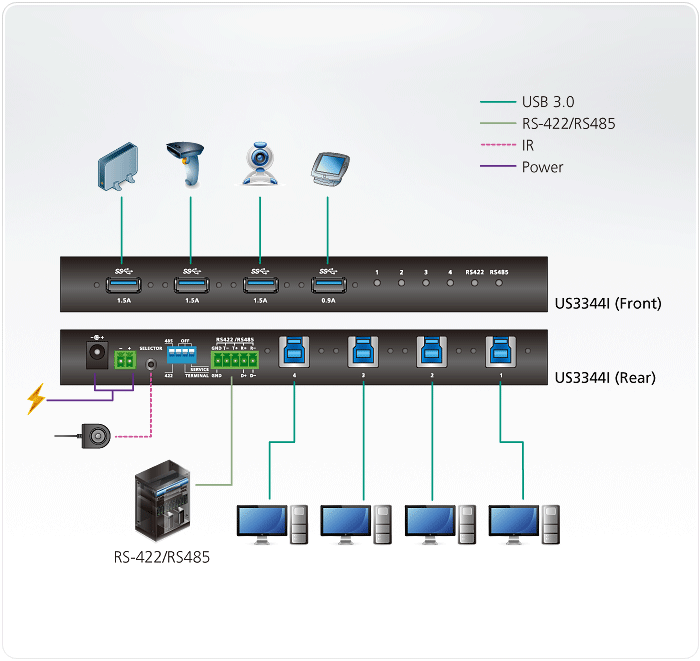

Diagram

Content

  • 1x 4x4 USB 3.1 Gen 1 Industrial Hub Switch
  • 2x LIN6-11C1-E11G USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M
  • 2x LIN6-11C1-E12G USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M
  • 1x Remote Port Selector
  • 1x Mounting Kit
  • 1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter)
  • 1x User Instructions

Specifications

Computer Connections4
Connectors
Computer4 x USB Type B Female (Blue)
Device4 x USB Type A Female (Blue)
Serial1 x 5-pin Terminal Plug (Green)
Power1 x 2-pin 9-24V Terminal Plug (Green)
Power (Optional)1 x 12V DC Jack Female (Black)
Port SelectionRemote port selector / Serial command
LEDs
Selected4 (Green)
SerialRS422 (Orange )
RS485 (Green )
Cable Length
USB Cable2x USB 3.1 Gen 1 Type-B to Type-A Cables 1.2M
2x USB 3.1 Gen 1 Type-B to Type-A Cables 1.8M
Remote Port Selector1.8 m
Environmental
Humidity0–80% RH, Non-condensing
Operating Temperature0–50°C
Storage Temperature-20–60°C
Physical Properties
HousingMetal
Weight1.04 kg ( 2.29 lb )
Dimensions (L x W x H)20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)
