ATEN UCE3250 4-Port USB 2.0 CAT 5 Extender (up to 50m)

€159.49 €131.81
Delivery time: 3-5 working days
4-Port USB 2.0 CAT 5 Extender (up to 50m)

Description

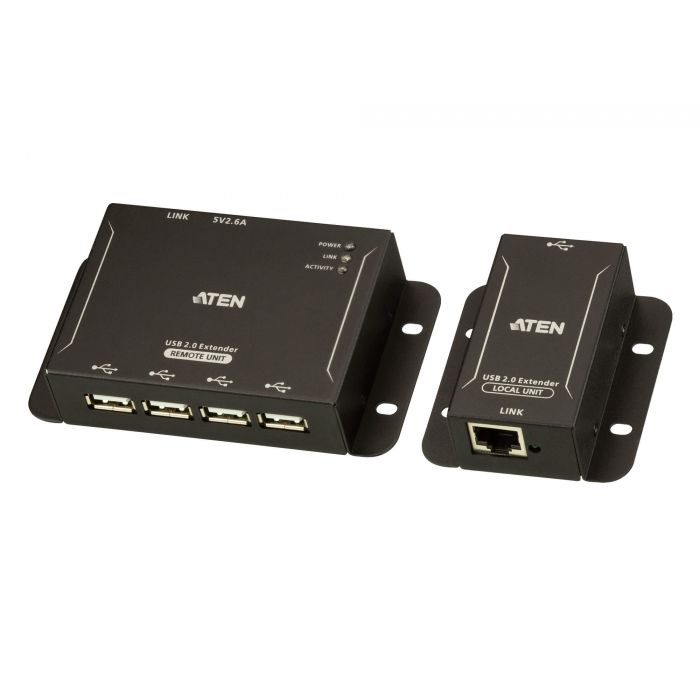

The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable.The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mice, webcams, scanners, or printers, etc. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size and integrated wall mounting enables space-saving installation.

Features

  • High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
  • Extension distance of up to 50m over a Cat 5/5e/6 cable
  • Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
  • Metal mechanical with wall mount design supports industrial deployment
  • Supports Windows®, OS X®, and Linux®
  • Plug- and- play

Diagram

Content

1x UCE3250L 4-port USB 2.0 CAT 5 Extender (Local unit)1x UCE3250R 4-port USB 2.0 CAT 5 Extender (Remote unit)1x USB Type-A Male to Type-B Male Cable1x 0AD6-1005-26EG Power Adapter1x User lnstructions

Specifications

FunctionUCE3250LUCE3250R
Connectors
USB Port1 x USB Type B Female4 x USB Type A Female
Link1 x RJ45 Female1 x RJ45 Female
PowerN/A1 x DC Jack
USB Specification2.0 / 1.1 High / Full / Low Speed2.0 / 1.1 High / Full / Low Speed
USB Devices SupportedN/A4 Devices
Power ConsumptionBus-PoweredSelf-Powered, 5V, 13W
Environmental
Operating Temperature0–50°C0–50°C
Storage Temperature-20–70°C-20–70°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
Weight0.09 kg ( 0.2 lb )0.16 kg ( 0.35 lb )
HousingMetalMetal
Dimensions (L x W x H)6.70 x 6.02 x 2.37 cm
(2.64 x 2.37 x 0.93 in.)
6.33 x 11.04 x 2.41 cm
(2.49 x 4.35 x 0.95 in.)
