Captures unencrypted HDMI video signal from camcorder or DSLR up to 1080P @ 60*
Supports live video streaming, webcasting and video conferencing
Compatible with popular streaming software, such as OBS, Xsplit, YouTube, Facebook and Twitch
Plug & Play – Supports UVC/UAC v1.1
Compatible with USB3.1 Gen1 Type-C standard
Works with all major operating systems: Windows® and OS X®
*CAMLIVE cannot display or capture HDCP protected content

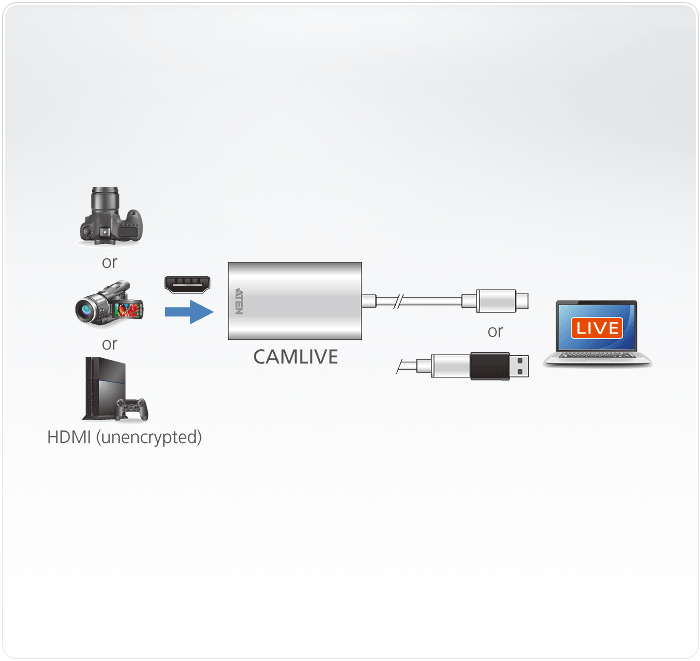

Diagram
Content
1x UC3020 CAMLIVE HDMI to USB-C UVC Video Capture
1x USB-C to USB-A Adapter*
1x User Instructions
* When using the adapter, if you are only detecting MJPG video, please disconnect the USB-C head from the adapter, flip the USB-C head around and reconnect it to the adapter.
Specifications
Connectors
Video In
1 x HDMI Type A Female (Black)
USB Port
USB 3.1 Gen1 Type-C Male (White) or USB 3.1 Gen1 Type-A Male (via Dongle, Black )
Video Input
Compliance
HDMI 1.4b, up to 1080p@60 (non-HDCP)
Video Resolution
480P, 720P, 1080P
Audio Sampling
16-bit PCM audio, 32KHz, 44.1KHz and 48KHz
Output
Up to 1080P UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
Environmental
Operating Temperature
0 - 40 ºC
Storage Temperature
-20 – 60 ºC
Humidity
0 - 80% RH, Non-Condensing
Minimum Hardware Requirements
CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more
OS Support
Windows 7 and above with UVC support Mac OS X 10.13 and above with UVC support
