UC10KM is a signal converter with a 90cm cable. It can convert signals of PS/2 devices (keyboard and mouse) into USB signals, and supports multiple operating systems to fulfill the needs of users.
Two PS/2 devices (keyboard and mouse) to USB Interface converter Supports PS/2 mice and Microsoft IntelliMouse Compatible with KVM switches USB 1.1 compliant Non-Powered Easy installation - no software required OS Support: Windows, Linux Redhat 7.0 or higher

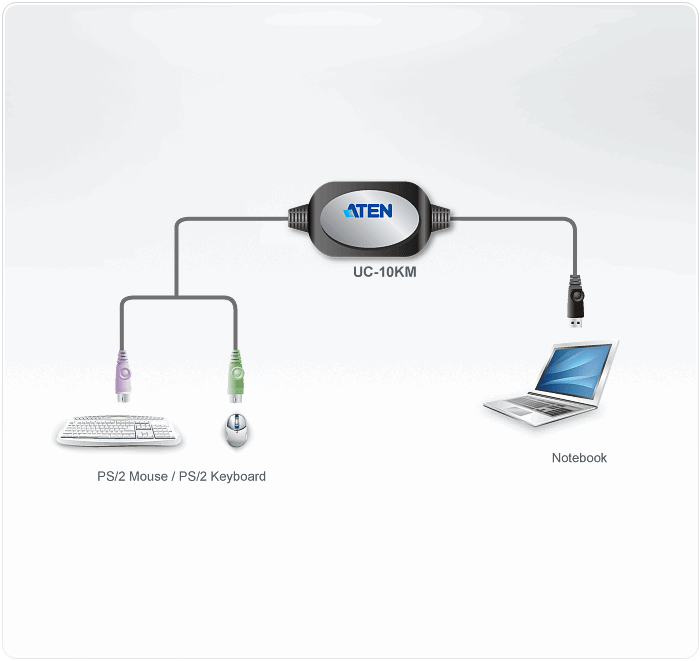

Diagram
Specifications
Connectors
USB
1 x USB Type A Male (Black)
PS/2 Keyboard
1 x 6-pin Mini-DIN Female (Purple)
PS/2 Mouse
1 x 6-pin Mini-DIN Female (Green)
Cable Length
90 cm
Platforms
Windows/Linux
Transfer Rate
12 Mbps
USB Specifications
USB 1.1 Compatible
Power Mode
Bus Powered (via the USB Cable)
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0~80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
65 g
Dimensions ( L x W x H )
1.50 x 3.70 x 1.10 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
