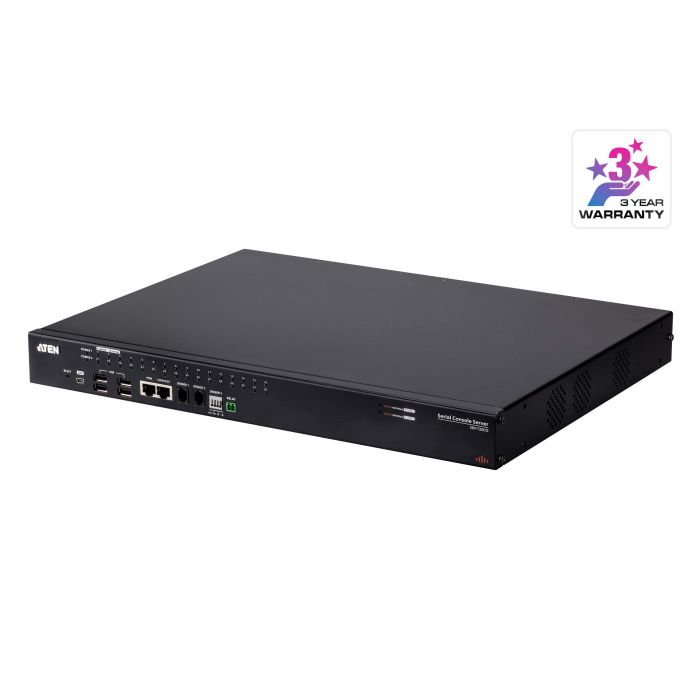

ATEN SN11xxCO Series (SN1116CO / SN1132CO / SN1148CO) serial console server provides IT and network administrators secure, out-of-band access to serial devices located at data centers or remote sites (such as network switches allowing console operation using RS-232 and USB console1). With dual power / SFP in the SN11xxCO models, all of them integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.
Features
System Accessibility and Availability
Secure in-band, out-of-band remote serial console and USB console access
Browser access with an intuitive GUI
Terminal-based access with a menu-driven UI or command-line interface
Modem dial-in / dial-back / dial-out access
Front USB ports for storage, USB console1, and UC232B connection
Laptop USB Console (LUC) port for local console access via laptop
Dual Ethernet ports allow fail control or dual IP address access
Dual power supply
Serial Console Management
Support sensor ports for environmental monitoring2
Relay port supports cabinet door access control
Auto-sensing DTE / DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
Online / Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
Response Check – checks the system status of the connected serial devices, and sents a notification if the check fails (e.g.system crash)
Convenient and simple serial device access via selectable Telnet / SSH and third-party clients such as PuTTY
Easy port access via selectable ActiveX, Java serial viewer or WebClient
Comprehensive viewer functions – copy / paste, logging, data import, macros, broadcasting and message board
Sun Solaris ready – Sun "break-safe"
Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and / or an email
Command filter – administrators can restrict users to execute only pre-defined commands
Multiple users can simultaneously access the same port – up to 16 connections per port
Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
Configurable user permissions for port access and control
Local and remote authentication and login
Third-party authentication via RADIUS, TACACS+, LDAP / AD and Kerberos
IP and MAC address filter for enhanced security protection
High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control
System Management
System configuration via web browser, Telnet / SSH client and local console
System log and event login
Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
SNMP agent v1 / v2 / v3
Event notification – supports notification of SMTP email and SNMP Trap
Backup / Restore system configuration and upgradeable firmware
Multi-browser support – Internet Explorer, Chrome, Firefox
NTP for time server synchronization
IPv4 / IPv6 support
LLDP support
CLI (command-line interface) support
Integrates into CC2000 software for centralized data center management
Integrates into CCVSR software for user session recording
Serial Device Management
Serial operation modes – Console Management, Console Management Direct, Real COM Port, TCP Server / Client, UDP Server / Client, and Virtual Modem
Real COM driver for Windows 2000 or higher and Windows Server 2003 / 2008
Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese
Note: 1. Compatible models: Cisco Catalyst 2960-C series 2. This is achieved using ATEN sensors 3. Fixed TTY Driver supports: – OpenServer (Sco Unix) – UnixWare 7, SVR 5 – UnixWare 2.1, SVR 4.2 – QNX 4.25, QNX 6 – FreeBSD – Solaris 10 – AIX 5.x – HP-UX 11i

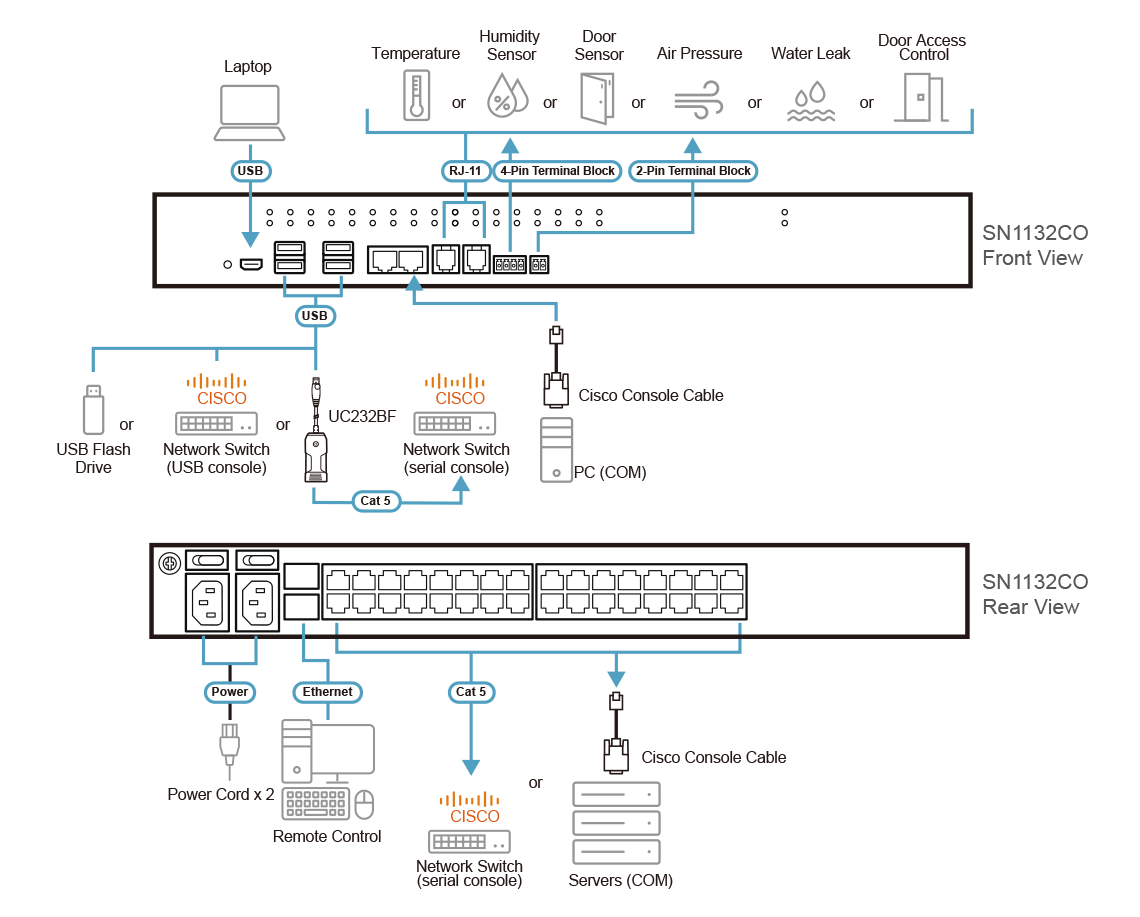

Diagram
Content
1 x SN1132CO Serial Console Server with Dual Power / SFP
1 x laptop USB console cable
2 x power cords
1 x food pad set (4 pcs.)
1 x rack mounting kit
1 x user instruction
Specifications
Connectors
Serial
32 x RJ-45 Female
LAN Ports
2 x SFP Slot
Power
2 x IEC 60320/C14
Local Console
1 x RJ-45 Female
PON
1 x RJ-45 Female (Reserved)
Laptop USB Console (LUC) Port
1 x Mini USB
USB Port
4 x USB Type A Female
Environment Sensor Ports
2 x RJ11 Female 1 x 4-Pin Terminal Block
Relay
1 x 2-Pin Terminal Block • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A
Switches
Power
2 x Rocker Switch
Reset
1 x Recessed Pushbutton
Maximum Input Power Rating
100–240VAC; 50/60Hz; 1.0A
Power Consumption
AC110V:11.2W:105BTU/h AC220V:11.3W:105BTU/h
LEDs
Serial
32 (Green)
10/100/1000 Mbps
2 (Red/Orange/Green)
Power
2 (Blue)
Mode of Operation
Console Management, Console Management Direct, Real Com Port, TCP Server/Client, UDP Server/Client
Environmental
Operating Temperature
0 - 55˚C
Storage Temperature
-20 ~ 60˚C
Humidity
0 - 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
4.60 kg ( 10.13 lb )
Dimensions (L x W x H)
43.84 x 32.84 x 4.40 cm (17.26 x 12.93 x 1.73 in.)
Note
- SN1132COD with dual DC power available at customer’s request - Optional fiber (2A-136G, 2A-137G) or copper (2A-143G) modules available - Optional sensors (EA1140, EA1240, EA1340, EA1440, EA1441, EA1442, EA1540) available
