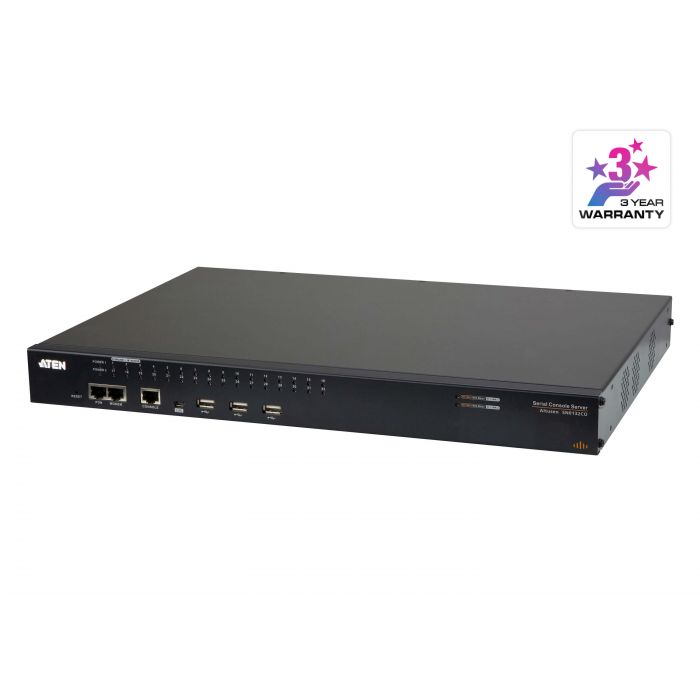

ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.
Features
System Accessibility and Availability
Secure in-band and out-of-band remote serial console access
Browser access with an intuitive GUI
Terminal-based access with a menu-driven UI
Modem dial-in/dial-back/dial-out access
Front USB ports for storage or USB-based PC cards
Laptop USB Console (LUC) port for local console access via laptop
Dual Ethernet ports allow fail control or dual IP address access
Dual power supply
Serial Console Management
Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
Response Check － checks the system status of the connected serial devices, and a notification will be sent out if the check fails (e.g. system crash)
Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
Easy port access via selectable ActiveX or Java serial viewer
Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
Sun Solaris ready – Sun “break-safe”
Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
Command filter – administrators can restrict users to execute only pre-defined commands
Multiple users can simultaneously access the same port – up to 16 connections per port
Modes for simultaneous access – Exclusive/Occupy/Share
Integrates with ATEN PDU* products for power management of each port
Security
Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
Configurable user permissions for port access and control
Local and remote authentication and login
Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
IP and MAC address filter for enhanced security protection
High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control
System Management
System configuration via web browser, Telnet/SSH client and local console
System log and event login
Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
SNMP agent
Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
Backup / Restore system configuration and upgradeable firmware
Multi-browser support – Internet Explorer, Chrome, Firefox
NTP for time server synchronization
IPv4 / IPv6 support
Integrates into CC2000 software for centralized data center management
Integrates into CCVSR software for user session recording
Serial Device Management
Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
