Aten PE6324G 24-Port Power in the NET ECO PDU

€869.95 €718.97
Delivery time: 3-5 working days
24-Port Eco PDU 1-U, Metered by Bank (2) & Switched by Outlet (21 x C13 & 3 x C19) 32Amp
main product photo

Description

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE6324 eco PDU is an intelligent PDU that contains 24 AC outlets and are available in various IEC or NEMA socket configurations.

It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
The PE6324 eco PDU offers remote power control combined with realtime power measurement – allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or outlet level, from practically any location via a TCP/IP connection.

The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports – providing precise measurements of current, voltage, power and watt-hour in a realtime display.

NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

* Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart.

Voor meer informatie.

Features

Power Distribution

Space saving 0U rack mount design with rear mounting
IEC or NEMA outlet models
3 x 7-segment front panel LED shows Current / IP Address for PDU / Bank
Remote users can monitor PDU/Bank status via web pages on their browsers
Safe shutdown support
Separate power for the unit´s own power and its power outlets – the user interface is still accessible even when an overload condition trips the devices´ circuit breaker


Remote Access

Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping
eco PDU Power Management software – eco Sensors
Supports SNMP Manager V1, V2 & V3


Operation

Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
RTC support to keep the timer running during times of no power.
Up to 8 user accounts and 1 administrator account


Management

Power status measurement at the PDU/Bank level
LED indicators for current and IP address at the PDU device and/or Bank levels
Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the PDU level
Environment monitoring – supports external temperature / humidity / Differential Pressure sensors for rack environment monitoring
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian


Security

Two-level password security
Strong security features include strong password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS


eco Sensors Energy Management Software*

Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and System log
Power Analysis Report

*eco Sensors is designed to work with NRGence™ PDUs, and is bundled with all PE series packages

pe6324 monitorlevel

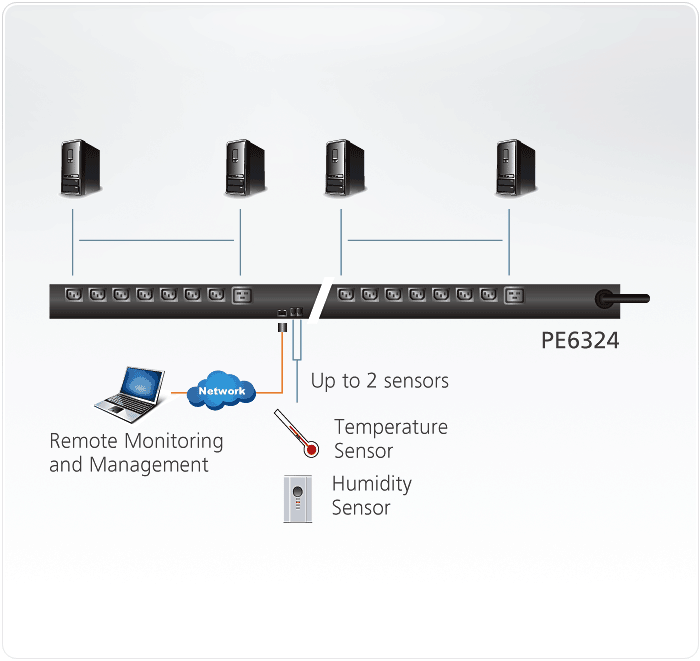

Diagram

Content

1x PE6324 eco PDU
1x Rack Mount Kit
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions

Specifications


Function PE6324B PE6324G
Power Outlets Direct 24
Connectors Power Inlet 1 x NEMA L6-30P (cord) 1 x IEC 60309 (cord)
Power Outlets NEMA NA
IEC 21 x IEC 320 C13
3 x IEC 320 C19
Sensor 2 x RJ-11 Female
LAN 1 x RJ-45 Female
LEDs Outlet Status 24 (Orange) 24 (Orange)
PDU Current / IP 2 (Green)
Current / IP 3-digit 7-segment (Orange)
Power 1 (Blue)
LAN 10/100 Mbps 1 (Orange / Green)
Link 1 (Green)
Sensor 2 (Green)
Switches Reset 1 x Semi-recessed Pushbutton
Power 2 x UL 489 Breaker
Select 1 x Pushbutton
I/P Rating 100–240V~; 50-60Hz;24A (UL), 30A (Max.) 100–240V~; 50-60Hz; 32A (Max.)
Power Capacity 6.2 kW 7.4 kW
O/P Rating Per Port NEMA
5-15RIEC C13		 100–240V~; 50-60Hz; 12A/15A 100–240V~; 50-60Hz; 10A
NEMA
5-20R/IEC C19		 100–240V~; 50-60Hz; 12A/15A 100–240V~; 50-60Hz; 15A
Total 100–240V~; 50-60Hz; 24A(UL), 30A (Max.) 100–240V~; 50-60Hz; 30A (Max.)
Environment Operating Temp. 0 - 50°C 0 - 40°C
Storage Temp. -20 - 60°C
Humidity 0–80% RH Non-condensing
Physical Properties Power Cord Length 1.6 m
Housing Metal
Weight 6.30 kg
Dimensions
( L x W x H )		 177.50 x 6.60 x 4.40 cm
    * The specification and pictures are subject to change without notice.
    * All trademarks and logos are the properties of their respective holders.
