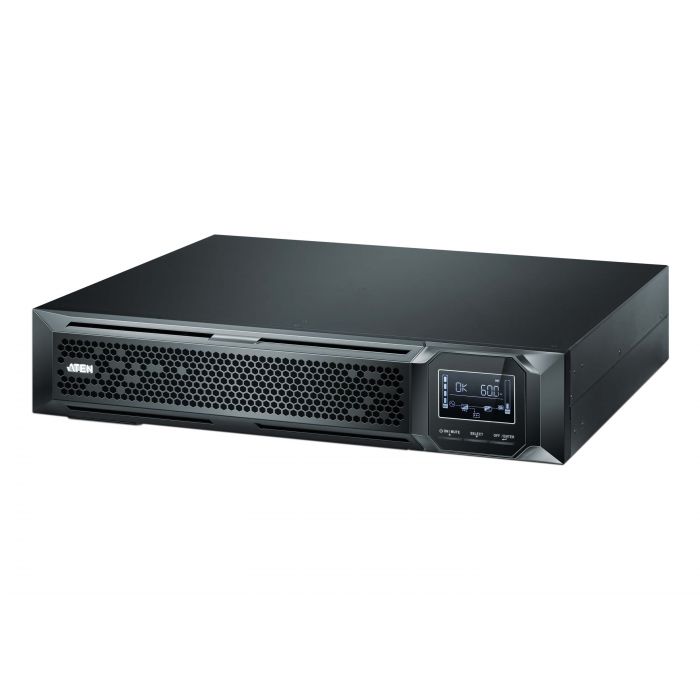

The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
Features
True double-conversion – Output power factor is 1 (maxium), which means all of the power supplied is being used for productive work and makes work the most efficient.
Output voltage regulation < 1% – Provides higher performance and efficiency for critical applications.
Programmable power management outlets – Users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices.
Emergency Power Off function (EPO) – EPO connector at rear panel allows emergency UPS Power Off from a remote location.
SNMP + USB + RS-232 multiple communications – Allows either USB or RS-232 communication ports to work with SNMP interface simultaneously.
Hot swappable battery design – All potential UPS maintenance, including complete power module exchange, can be performed without powering down connected equipment. As long as utility power is on, you can leave the UPS and connected equipment on while replacing the battery.
ECO mode for energy saving – Offers up to 97% efficiency to cut energy usage and cost. UPS power application via static bypass, timely returning to online double conversion when the need arises.
Provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection.
High power factor charger up to 1000W capacity with very low ripple current when charging battery.
Multi-functional LCD interface – Displays immediate, detailed information on input voltage, battery capacity, power status, battery status, operating status, and assessed backup runtime, etc.
Smart battery charger design to optimize battery performance – Adjusts charging voltage according to outside temperatures and extends the useful service life of batteries.
Content
1x Online UPS1x Rack Mounting Kit1x Rail Slide Kit1x RS-232 Cable1x USB Type A to B Cable3x Power Cable1x Installation CD2x Vertical Mount Kit1x User Instructions
Specifications
General
UPS Topology
Double-Conversion
Energy Saving(max)
>96%(ECO) >89%(AC) >88%(Batt)
HID Compliant USB Port
Yes
Serial Port
Yes
SNMP / HTTP Remote Monitoring
Yes - Optional SNMP CARD
Input
Voltage
220/230/240 VAC
Input Voltage Range
160-300 VAC ± 5% @ 100% load 110-300 VAC ± 5% @ 50% load Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.
3 hours recover to 95% capacity@2A charging current. Max charger current 12A
Extended Battery Module
BP24V18AH
Replacement Battery Pack
BC24V9AH
Replacement Battery Pack Quantity
1
Physical Properties
Rack Unit
2U
Type
Rack/Tower
Dimensions (L x W x H)
8.80 x 43.80 x 41.00 cm (3.46 x 17.24 x 16.14 in.)
Weight
12.70 kg ( 27.97 lb )
Environmental
Temperature (Operating / Storage)
0–40°C (non-condensing) / -20 – 50°C
Humidity (Operating & Storage)
20–90 % RH / 10% – 95%(No condensing)
Audible noise at 1M from surface of unit
Less than 50dB
Certifications
Certifications
CE
Approvals
RoHS
Package Contents
1x Rack Mounting Kit 1x Rail Slide Kit 1x RS-232 Cable 1x USB Type A to B Cable 4x Power Cable (1xIEC C13/C14+ 1xIEC C13/Schuko+1xIEC C13/UK +1xIEC C13/AU(10A))
