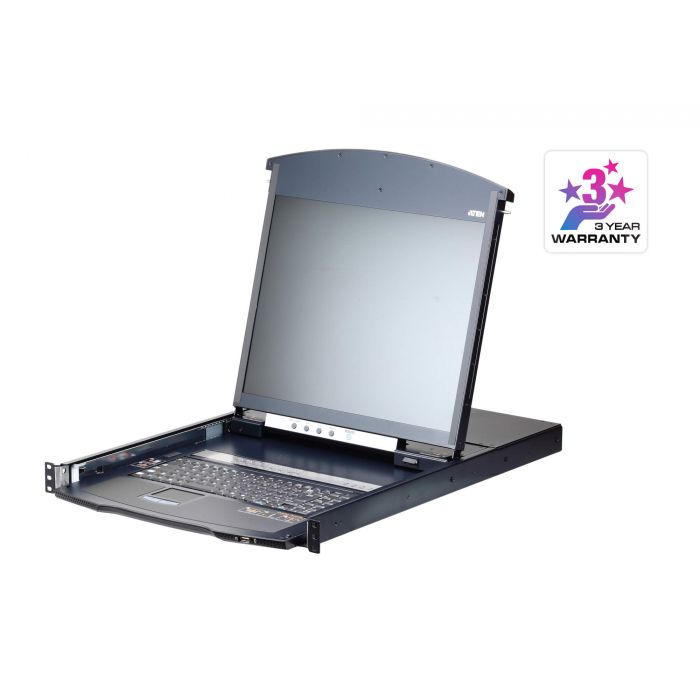

ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19 LED-backlit LCD monitor and keyboard with built-in touchpad.
High-Grade Security – supports FIPS 140-2 level 1 security standards
Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds
Hardware
Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
One bus for local and one bus for remote KVM over IP access
Space-saving RJ-45 ports for Cat 5e/6 cable connections
KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Supports external USB mouse
Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock enables the console drawer to remain securely locked away when not in use
LCD power button saves energy and prolongs the life of the display
High Port Density – RJ-45 connectors provide up to 16 ports in 1U housing
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
Monitor and control up to 16 computers on a single level or control up to 256 computers in a cascade* * Cascade-compatible KVM switches include the following: CS1308, CS1316, KH1508A and KH1516A.
Management
Up to 64 user accounts
Up to 32 concurrent logins
End Session Feature – administrators can terminate any remote session
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached ATEN PDU devices
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software*
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Out-of-Band Access – modem dial-in / dial-out / dial-back support
Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches *Supports recording computer operations accessed via remote sessions.
Easy-to-Use Interface
Easy computer selection via pushbuttons, OSD (On-Screen Display), and Browser-based GUI
Local console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
ATEN Exclusive Panel Array™ Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
Launch virtual remote desktop sessions to control multiple servers at the same time
Full screen or scalable virtual remote desktop window
Video syncing allows the local console monitor’s EDID information to be stored on the KVM Adapter Cables for display resolution optimization
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Configurable user and group permissions for server access and control
Automated CSR creation utility and third-party CA certificate authentication
IP/MAC Filter support for enhanced security protection
Virtual Media
Virtual media enables file application, OS patching, software installations and diagnostic testing
Works with USB-enabled servers at the operating system and BIOS level
Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
Supports Smart Card/CAC Reader
Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speeds; color depth, threshold and noise settings reduce data transmission to lower bandwidth
Full screen or scalable window for virtual remote desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Exit Macro support
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting

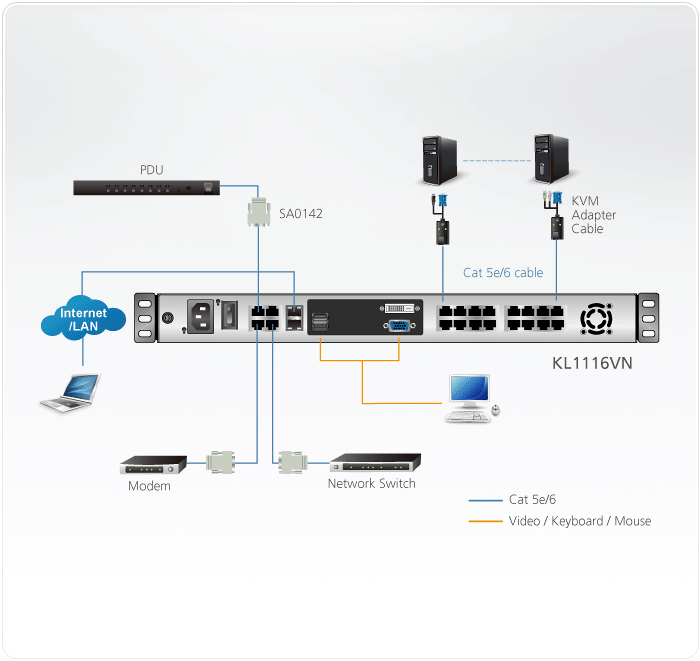

Diagram
Content
1x KL1116VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE) 1x LIN2-418K-E12G Power Cord 1x User Instructions
Specifications
Function
KL1116VN
Console Connections
Local
1
Remote
1
Computer Connections
Direct
16
Maximum
256 (via Cascade)
Port Selection
OSD, Hotkeys, Pushbuttons
Connectors
Console Ports
2 x USB Type-A Female (White) 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue)
External Mouse Port
1 x USB Type-A Female
KVM Ports
16 x RJ-45 Female
Serial
2 x RJ-45 Female
PON
1 x RJ-45 Female
Modem
1 x RJ-45 Female
LAN Ports
2 x RJ-45 Female
Power
1 x IEC 60320/C14
Switches
Port Selection
16 x Pushbutton
Reset
1 x Semi-recessed Pushbutton
Power
1 x Rocker
LCD Power
1 x Pushbutton
LCD Adjustment
4 x Pushbutton
LEDs
Online
16 (Green)
Selected
16 (Orange)
10/100/1000 Mbps
2 (Orange / Orange & Green / Green)
Power
1 (Blue)
LCD Power
1 (Orange)
Lock
1 x Num Lock(Green) 1 x Caps Lock(Green) 1 x Scroll Lock(Green)
