The KA7970 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.
• Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port • Lifetime firmware upgrades • Built in 4.5m Cat 5 cable • Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 4.5m • Hot pluggable - add or remove computers without having to power down the switch. • Compact size
*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

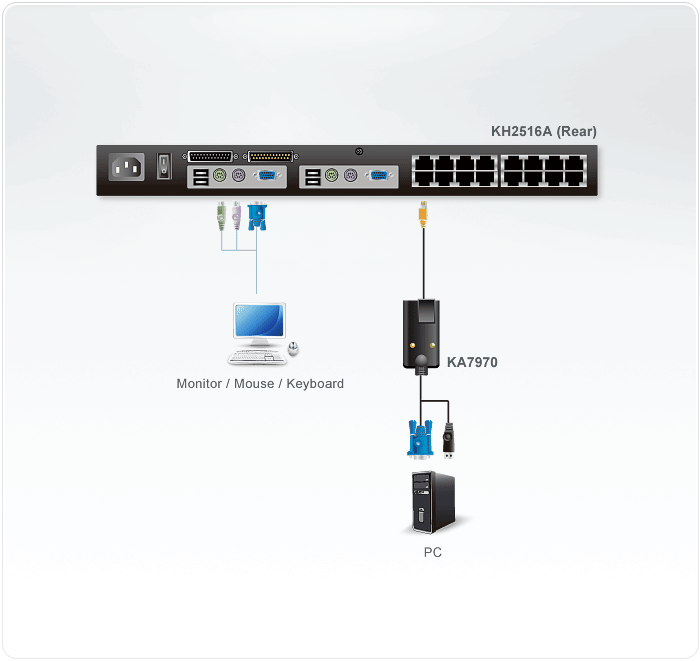

Diagram
Content
• 1x KA7970 USB KVM Adapter Cable (CPU Module)
Specifications
Connectors
Link
1 x RJ-45 Female with 4.5 m Cat5 cable
Mouse to computer
1 x USB Male
Keyboard to computer
1 x USB Male
VGA to computer
1 x HDB-15 Male
LEDs
On Line /Link
1 (Orange)
Physical Properties
Housing
Plastic
Weight
244 g
Dimensions ( L x W x H )
7.93 x 3.70 x 1.55 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
