Aten KA7177 VGA/USB CPU Module

€150.56 €124.43
Item in stock
USB - VGA to Cat5e/6 KVM Adapter Cable (CPU Module), with Smart Card Reader & Virtual Media

Description

The KA7177 KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. The KA7177 also provides a USB plug to connect the target computer for Smart Card/CAC support. With its small form factor and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew techniques for greatly enhanced video quality.


Voor meer informatie.

Features


Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 50m
Built in ASIC for greater reliability and compatibility
CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
Compact size
Virtual Media Support
Smart Card / CAC Reader Support
*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

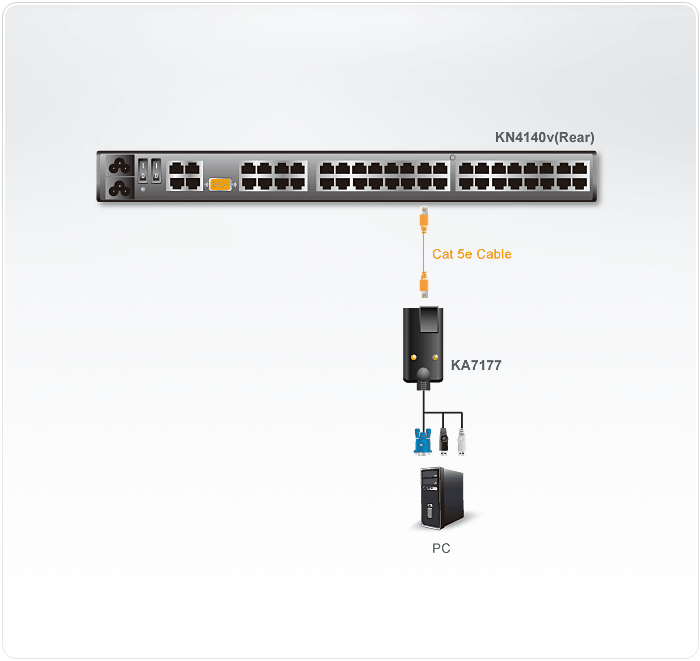

Diagram

Content


1x KA7177 KVM Adapter Cable
1x Rack Mount Kit
1x Rack Mounting Guide

Specifications


Connectors Link 1 x RJ-45 Female
USB to Computer 1 x USB Type A Male
Smart Card / CAC to Computer 1 x USB Type A Male
VGA to Computer 1 x HDB-15 Male
LEDs On Line 1 (Green)
Power 1 (Orange)
Physical Properties Housing Plastic
Weight 154 g
Dimensions ( L x W x H ) 9.00 x 4.30 x 2.30 cm
    * The specification and pictures are subject to change without notice.
    * All trademarks and logos are the properties of their respective holders.
