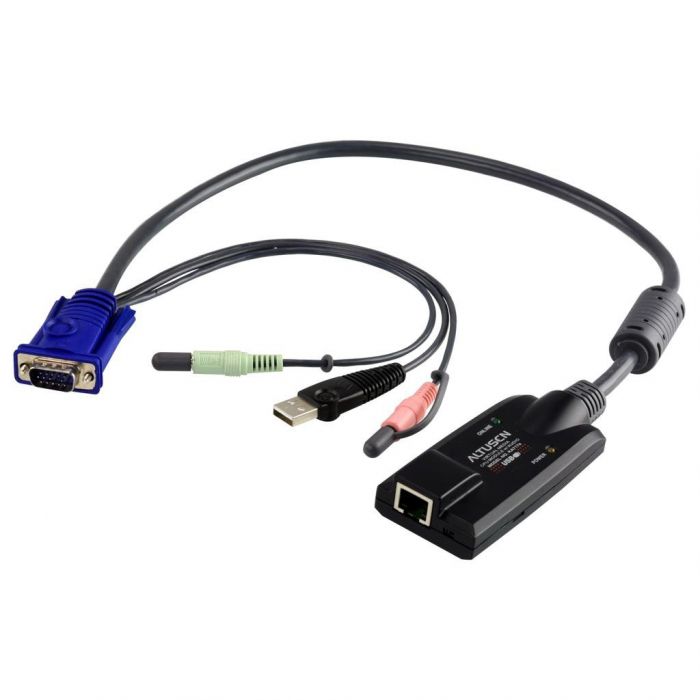

Aten KA7176 USB Virtual Media CPU Module

Name: Aten KA7176 USB Virtual Media CPU Module
Brand: Aten
SKU: KA7176
Price: 200.21 EUR
Availability: InStock

€200.21 €165.46

Item in stock

USB 2.0 + Audio Virtual Media CPU Module (50 Meters)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The KA7176 KVM Adapter Cable connects the KVM switch to the video, USB and audio ports of the target computer. With its small form factor and light weight design, it represents the next generation of KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Voor meer informatie.

Features

• Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
• Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
• Lifetime firmware upgrades
• Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 50m
• Built in ASIC for greater reliability and compatibility
• CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
• Compact size
• Virtual Media Support
• Audio enabled

*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) supported

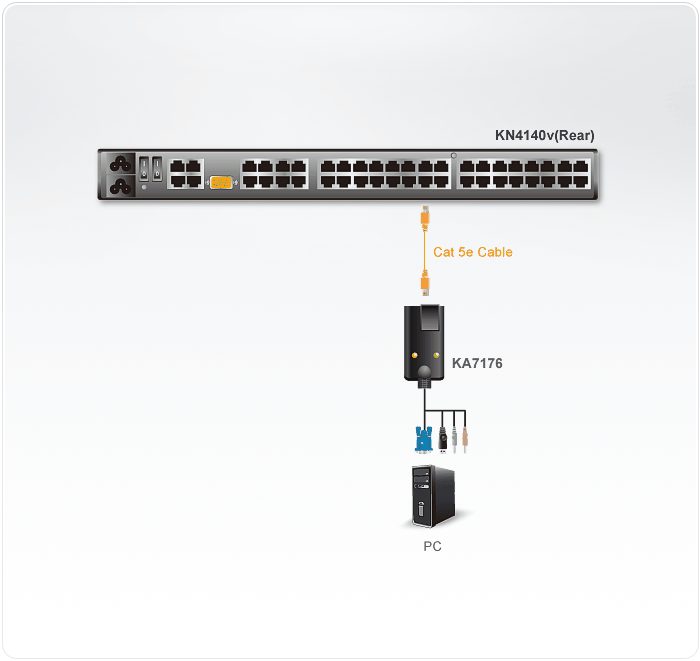

Diagram

Content

1x KVM Adapter Cable
1x Rack Mount Kit
1x Rack Mounting Guide

Specifications

Connectors	Link	1 x RJ-45 Female
	USB to computer	1 x USB Type A Male
	VGA to computer	1 x HDB-15 Male
	Microphone	1 x Mini stereo Plug
	Speaker	1 x Mini stereo Plug
LEDs	On Line	1 (Green)
LEDs	Link	1 (Orange)
Physical Properties	Housing	Plastic
	Weight	170 g
	Dimensions ( L x W x H )	9.00 x 4.30 x 2.30 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
