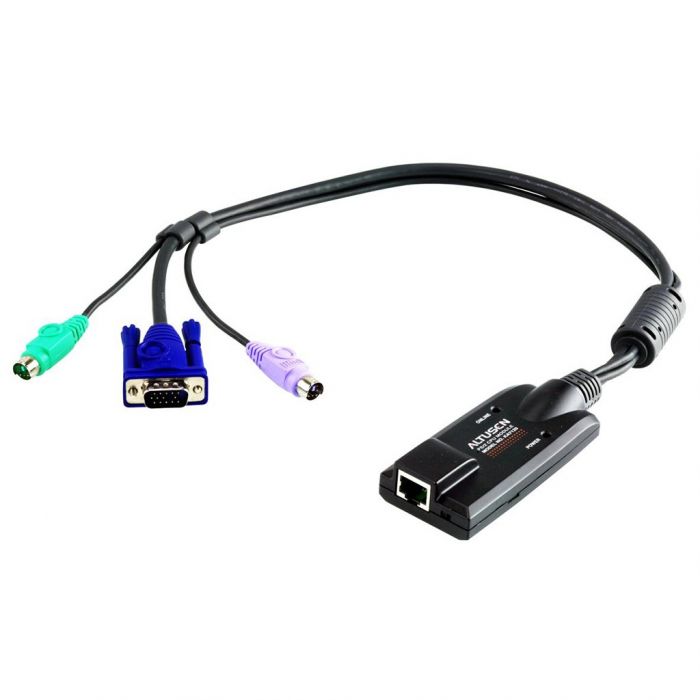

Aten KA7120 PS/2 CPU Module

€101.08 €83.54
Delivery time: 3-5 working days
PS/2 CPU Module (50 Meters)

Description

The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Voor meer informatie.

Features

• Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
• Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
• Lifetime firmware upgrades
• Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 50m
• Built in ASIC for greater reliability and compatibility
• CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC)
• Compact size

*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

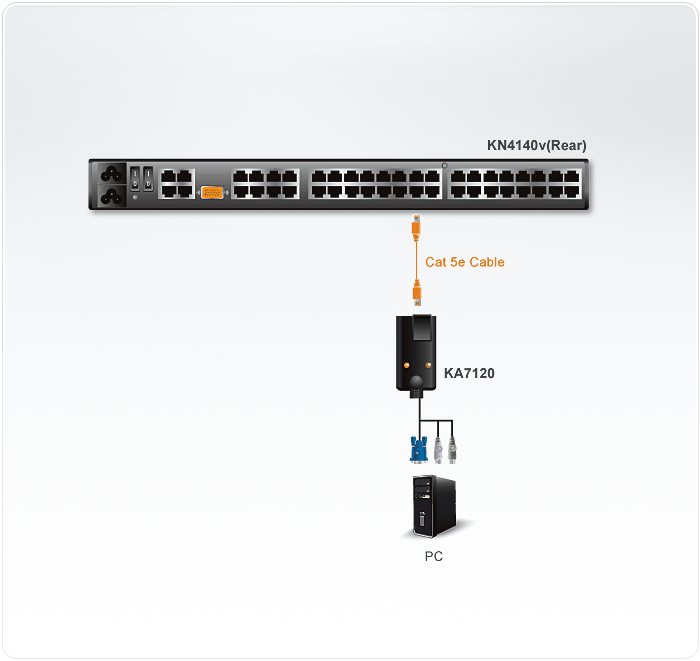

Diagram

Content

1x KVM Adapter Cable
1x Rack Mount Kit
1x Rack Mounting Guide

Specifications

Connectors Link 1 x RJ-45 Female
Mouse to computer 1 x Min Din 6 Male
Keyboard to computer 1 x Min Din 6 Male
VGA to computer 1 x HDB-15 Male
LEDs On Line 1 (Green)
Link 1 (Orange)
Physical Properties Housing Plastic
Weight 120 g
Dimensions ( L x W x H ) 9.00 x 4.30 x 2.30 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
