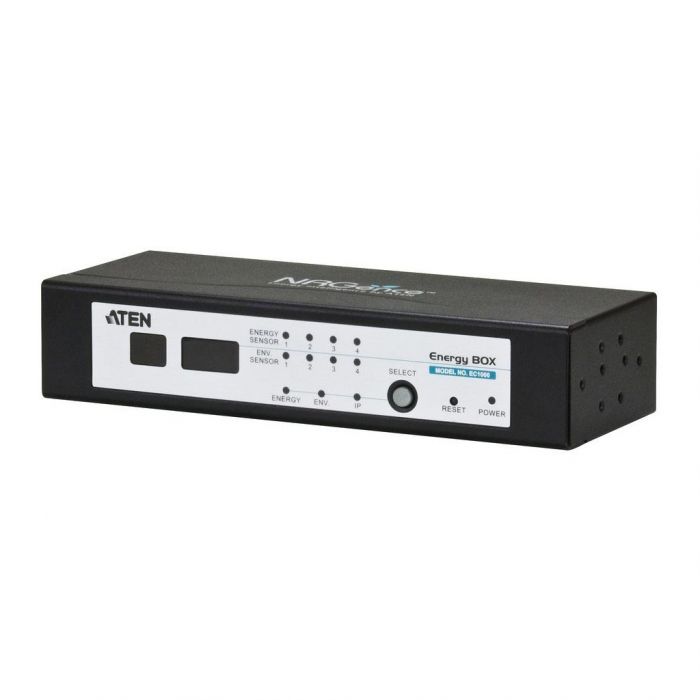

Aten EC1000 Over IP PDU Metering Device

Name: Aten EC1000 Over IP PDU Metering Device
Brand: Aten
SKU: EC1000
Price: 226.10 EUR
Availability: InStock

€226.10 €186.86

Delivery time: 3-5 working days

Temperature Sensor for PN 7-series

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs – to ensure safe and effective energy-saving power management.

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.

The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN´s eco Sensors software.

The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.

Remote monitoring offers secure access with 128bits SSL encryption, and customizable account policies for user management. Remote authentication supports RADIUS and additional management interfaces including HTTP, HTTPS, and SNMPv1&v2&v3 (Read, Write, Trap). Event notifications can be monitored via Syslog/SMTP/SNMP trap and audible alarms for real–time local and remote alerting.
When used in conjunction with ATEN´s Energy PDUs* and eco Sensors Energy Management Software, the EC1000 allows you to conveniently upgrade your cabinet with remote energy management functionality to make your server room go green quickly and cost-effectively.

Voor meer informatie.

Features

Operation
Space saving 1U rack mounting with front and rear mounting
4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
Maximum Amperage Monitor 32A@100V~240V (Energy Box)
3 digit 7 segment front panel LED displays current/sensor/IP address information
Threshold monitoring for:
1.Current
2.Temperature*
3.Humidity*
4.Differential pressure*
Threshold alerting through:
1. Local: audible alarm and LED lights
2. Remote: SMTP/SNMP trap/SyslogManagement
Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box
Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management
Management through eco Sensors Energy Management Software or 3r party SNMP manager
Supports name assignment for individual Energy PDUs
Event Logging – 128 line event log
Syslog support
F/W upgradableRemote Access
Remote management via TCP/IP using built in 10/100Mbps Ethernet port
Management via built in browser based GUI
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
Supports SNMP Manager V1, V2, V3Security
Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
RADIUS authorization and authentication* Requires external sensors

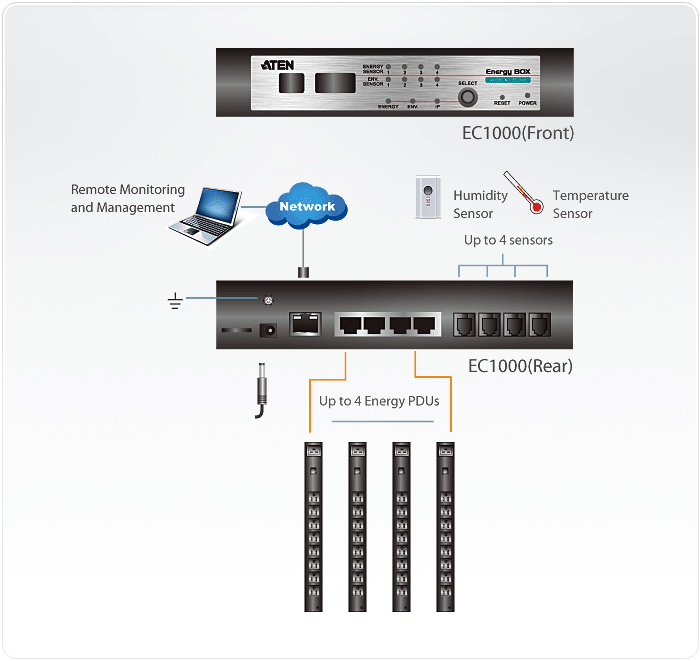

Diagram

Content

1x EC1000 Energy Box
1x 0AD8-8605-24EG Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions

Specifications

Energy PDU Connections			4
Port Selection			Pushbutton
Connectors	Energy Sensor		4 x RJ-45 Female
	Environment Sensor		4 x RJ-11 Female
	Power		1 x DC Jack
	LAN		1 x RJ-45 Female
Switches	Reset		1 x Semi-recessed Pushbutton
	Selection		1 x Selection Pushbutton
LEDs	PDU Status		4 (Orange)
	Sensor Status		4 (Green)
	Energy/Environment/IP		3 (Green)
	Selection		1 digit 7-segment (Orange)
	Current/Sensor/IP Address		3 digit 7-segment (Orange)
	Power		1 (Blue)
	LAN	10M/ 100Mbps	1 (Orange/Green)
		Link	1 (Green)
Monitoring Range			Precision: ±0.1A@0 ~ 1A, ±1% >1A
Power Consumption			DC 5.3 V
Environment	Operating Temp.		0-50°C
	Storage Temp.		-20-60°C
	Humidity		0 - 80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.59 kg
	Dimensions ( L x W x H )		20.00 x 7.59 x 4.20 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
