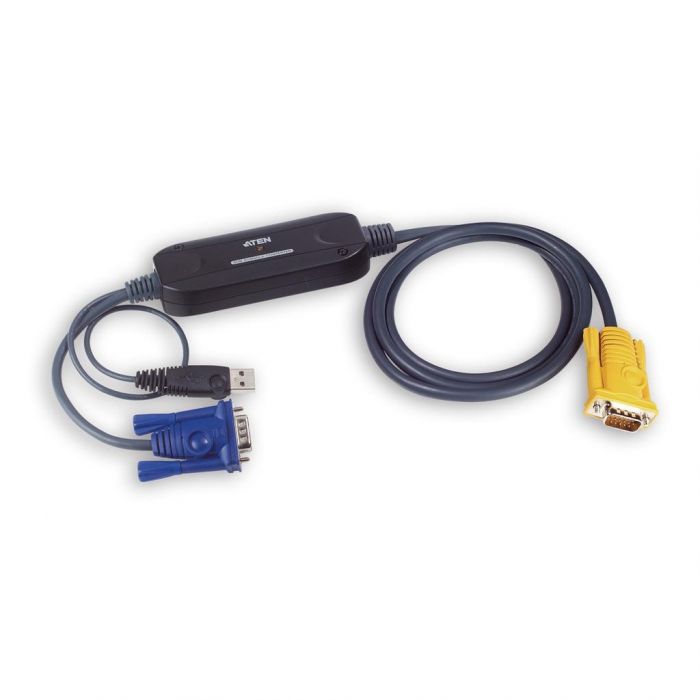

Aten CV131B Sun Console Converter
€79.86
€66.00
1.8m Sun Console Converter
Description

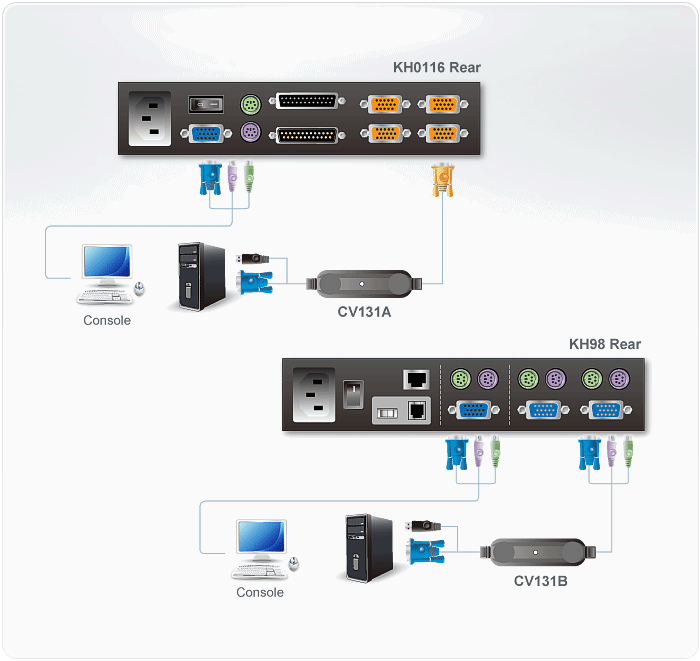

CV131A/CV131B are signal converters specifically designed for SUN systems. They can be used with KVM switches. Both models are easy to install and can be configured via the hotkeys on the keyboard.
Voor meer informatie.
Features
Compatible with Sun USB systems Compatible with ATEN or ALTUSEN SPHD* or PS/2 equipped KVM switches Translates PS/2 keyboard, mouse, and VGA signals to Sun USB keyboard, mouse and monitor signals High quality molded connectors Keyboard language selection via simple hotkeys Composite sync video support Supports PS/2 mice and Microsoft Intellimouse External power adapter not required Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900*Compatible with SPHD PS/2 and Combo products only.
Content
Specifications
Console Connection
1
Connectors
To Sun
Keyboard/
1 x USB Type A Male (Black)
Video
1 x HDB-15 Male (Blue)
To Switch
Keyboard
1 x SPHD-15 Male (Yellow)
1 x 6-pin Mini-DIN Male (Purple)
Video
1 x HDB-15 Female (Blue)
Mouse
1 x 6-pin Mini-DIN Male (Green)
LEDs
Power
1 (Orange)
Emulation
Keyboard / Mouse
Sun
Video
1600 x 1200
Environment
Operating Temp.
0 ~50°C
Storage Temp.
-20 ~60°C
Humidity
0~80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.20kg
0.24kg
Cable Length
1.8 m
Dimensions (L x W x H)
10.65 x 4.20 x 2.31 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
