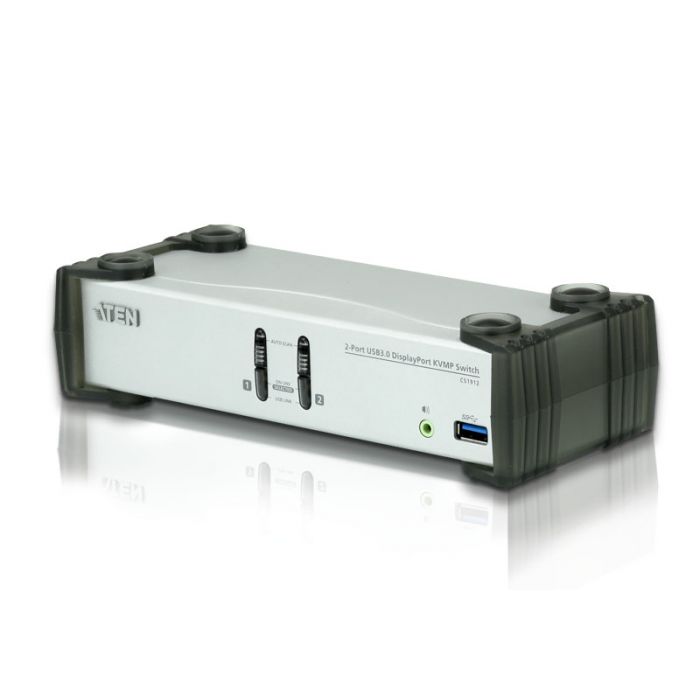

The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
Features
2-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
One USB console controls 2 computers and 2 USB peripherals
Computer selection via front panel pushbuttons, hotkeys and mouse*
Independent switching of KVM, USB, and Audio focus
Superior video quality – up to 3840 x 2160 @ 30 Hz
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
DisplayPort 1.1 compliant, HDCP compliant
Supports HD audio through DisplayPort**
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection – if a computer is powered off, the CS1912 automatically switches to the next powered-on computer
DisplayPort Dual – Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter***
Hot pluggable – add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboards
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows, Mac, and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation****
Auto Scan Mode for monitoring all computers
Firmware upgradable
Note: * Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. ** HD audio through DisplayPort cannot be switched independently. *** DisplayPort Dual – Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility. **** PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

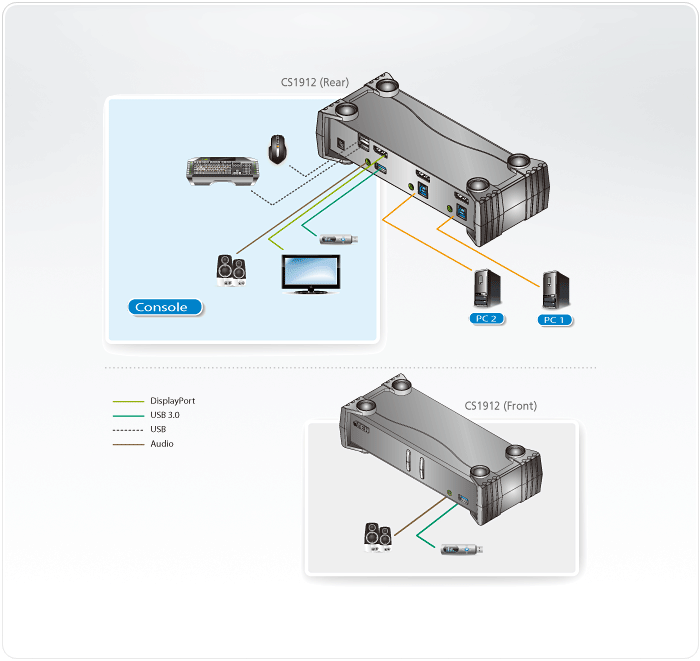

Diagram
Content
1 x CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch 2 x LIN5-20K1-K14G DisplayPort Cables 2 x LIN6-11C1-E12G USB 3.0 Cables 2 x LIN5-0205-21CG Audio Cables 1 x 0AD8-8005-40MG Power Adapter 1 x User Instructions
Specifications
Computer Connections
2
Port Selection
Hotkey, Pushbutton, Mouse
Connectors
Console Ports
2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports
2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green)
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
