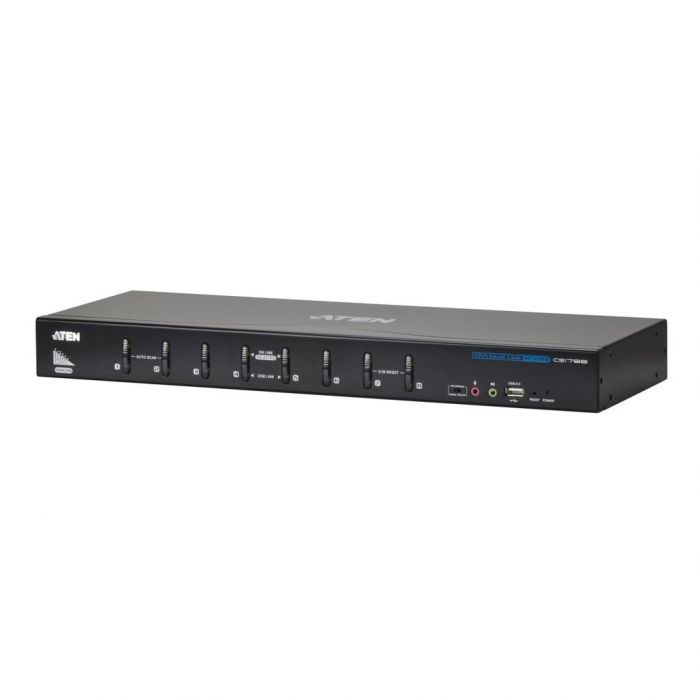

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
Furthermore, the CS1788 comes with ATEN´s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.The CS1788 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).
One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices Supports both digital (DVI) and analog (VGA) video – mixed operation possible Cascadable to three levels – control up to 512 computers Multi-view feature – stack up to four CS1788 units and display video from up to four monitors (dual view / triple view / quad view) 2-port USB 2.0 hub built in Fully compliant with the USB 2.0 specification Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information Two-level (Administrator/User) password authorization for enhanced security protection Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound Systems Console audio ports on front panel for easy access Multiplatform support – Windows, Linux, Mac, Sun Supports widescreen resolutions Superior video quality – 2560 x 1600 (Dual Link DVI); 2048 x 1536 (VGA); DDC2B Independent switching of KVM and USB focus DVI digital and analog monitor support – fully compliant with the DVI specifications HDCP compatible Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish Auto Scan Mode for monitoring all computers Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously Firmware upgradableNote: PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers

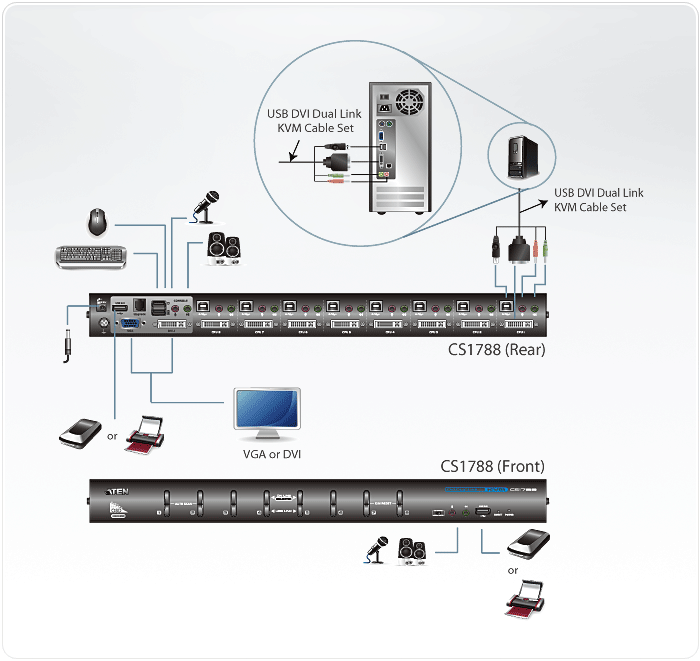

Diagram
Content
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit 2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets 1x LIN5-04A2-J11G Firmware Upgrade Cable 1x 0AD6-1605-24EG Power Adapter 1x Foot Pad Set (4 pcs) 1x User Instructions
Specifications
Computer Connections
Direct
8
Max.
512 (via Cascade)
Port Selection
OSD, Hotkey, Pushbutton
Connectors
Console Ports
Keyboard
1 x USB Type A Female (Black)
Video
1 x HDB-15 Female (Blue) / 1 x DVI-I Female (white)
Mouse
1 x USB Type A Female (Black)
Speakers
2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel)
Microphone
2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
KVM Ports
KB / Mouse
8 x USB Type B Female (White)
Video
8 x DVI-I Female (White)
Speakers
8 x Mini Stereo Jack Female (Green)
Microphone
8 x Mini Stereo Jack Male (Pink)
F/W Upgrade
1 x RJ-11 Female
Power
1 x DC Jack
USB 2.0 Hub
2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)
