The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio One USB console controls two computers and two additional USB devices 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification Full bass response for high quality 7.1 channel surround sound systems Computer selection via font panel pushbuttons, hotkeys, and mouse NEW! Multiplatform support – Windows, Linux, Mac, and Sun* Independent switching of KVM, USB, and Audio focus DVI digital and analog monitor support – fully compliant with the DVI specifications Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link) nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080 HDCP compatible Support widescreen resolutions HDCP compatible Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW! Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW! Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping – supports English, Japanese, and French keyboards Auto Scan Mode for monitoring all computers Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards Mac/Sun keyboard work only with their own

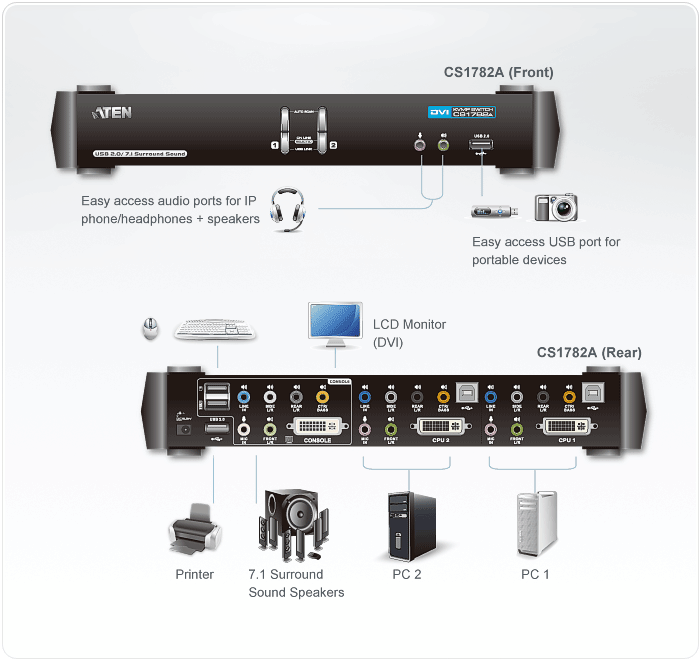

Diagram
Content
• 1x CS1782A USB DVI Dual Link KVMP™ Switch
• 2x 2L-7D02UD DVI-D KVM Cables sets
• 2x Custom 7.1 Channel Surround Sound Cable Sets
• 1x 0AD6-1605-24EG Power Adapter
• 1x User Instructions
Specifications
Computer Connections
2
Port Selection
Front Panel Pushbuttons, Hotkeys, Mouse
Connectors
Console Ports
Keyboard
1 x USB Type A Female (Black; rear panel)
Video
1 x DVI-I Female (White)
Mouse
1 x USB Type A Female (Black; rear panel)
Audio
Line Out
2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel)
Line In
1 x Mini Stereo Jack Female (Blue)
Side Speaker Out
1 x Mini Stereo Jack Female (Gray)
Rear Speaker Out
1 x Mini Stereo Jack Female (Black)
Center/ Subwoofer
1 x Mini Stereo Jack Female (Orange)
Microphone
2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports
Keyboard / Mouse
2 x USB Type B Female (White)
Video
2 x DVI-I Female (White)
Audio
Line Out
2 x Mini Stereo Jack Female (Green)
Line In
2 x Mini Stereo Jack Female (Blue)
Side Speaker Out
2 x Mini Stereo Jack Female (Gray)
Rear Speaker Out
2 x Mini Stereo Jack Female (Black)
Center/ Subwoofer
2 x Mini Stereo Jack Female (Orange)
Microphone
2 x Mini Stereo Jack Female (Pink)
Power
1 x DC Jack
USB 2.0 Hub
2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)
Switches
Power Selected
2 x Pushbutton
LEDs
On Line / Selected
2 (Orange)
USB Link
2 (Green)
Emulation
Keyboard / Mouse
USB
Video
DVI Dual Link: 2560x1600 DVI Single Link: 1920 x 1200
