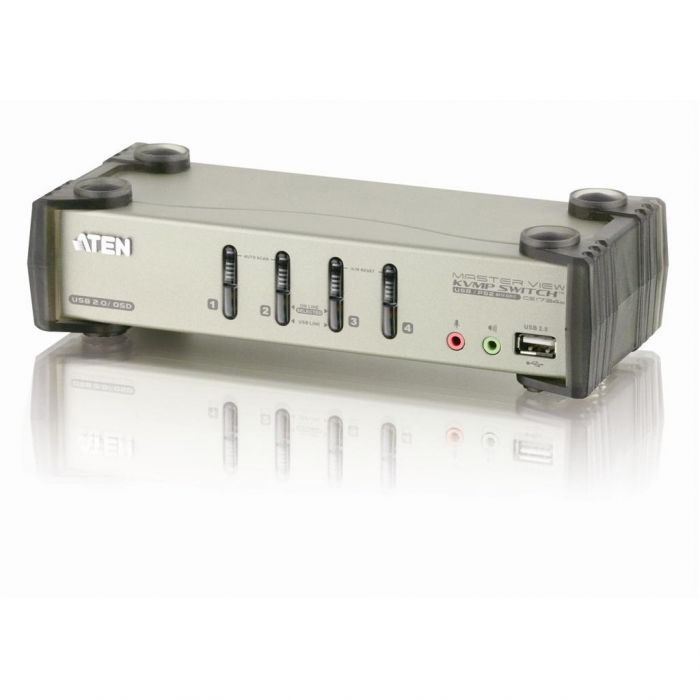

The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse. Voor meer informatie.
Features
4-port KVM switch with USB 2.0 support and 2.1 surround sound audio One console controls four computers and two additional USB devices 2-port USB 2.0 hub built in USB 2.0 compliant Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems Console audio ports on front panel for easy access - ideal for IP phone users Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse Independent switching of KVM, USB, and Audio focus Superior video quality; 2048 x 1536; DDC2B Supports widescreen resolutions Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse Multiplatform support - Windows , Mac, and Sun Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution Complete keyboard emulation for error-free booting Sun/Mac keyboard support and emulation* Auto Scan Mode for monitoring all computers LED Display for easy status monitoring Easy installation no software required Firmware upgradeable
*1.PC keyboard combinations emulate Sun/Mac keyboards 2.Sun/Mac keyboards only work with their own computers

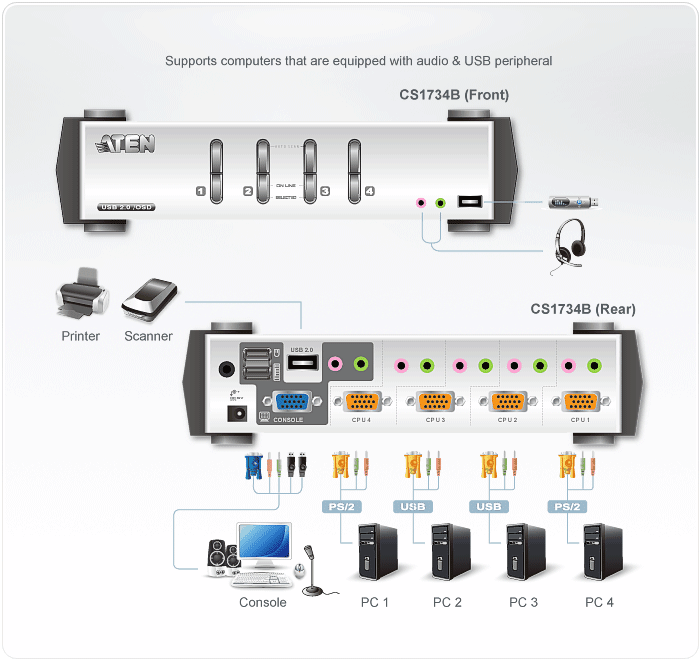

Diagram
Content
• 1x 4-Port USB 2.0 KVMP™ Switch
• 2x 2L-5301U USB KVM Cables
• 2x 2L-5302U USB KVM Cables
• 1x UC20KMZ-A-11 USB-to-PS/2 Converter
• 2x OSD/Hotkey Stickers
• 1x Firmware Upgrade Cable
• 1x 0AD6-1605-24EG Power Adapter
• 1x User Instructions
Specifications
Computer Connections
4
Port Selection
OSD; Hotkey; Pushbutton; Mouse
Connectors
Console Port
Keyboard
1 x USB Type A Female (Black)
Video
1 x HDB-15 Female (Blue)
Mouse
1 x USB Type A Female (Black)
Speaker
2 x Mini Stereo Jack Female (Green)
Mic.
2 x Mini Stereo Jack Female (Pink)
KVM Port
Keyboard
4 x SPHD-15 Female (Yellow)
Video
Mouse
Speaker
4 x Mini Stereo Jack Female (Green)
Mic.
4 x Mini Stereo Jack Female (Pink)
Firmware upgrade
1 x 4-conductor 3.5mm Jack (Black)
Power
1 x DC Jack
USB Hub
2 x USB Type A Female (White)
Switches
Selected
4 x Pushbutton
LEDs
On Line/ Selected
4 (Orange)
USB Link
4 (Green)
Emulation
Keyboard / Mouse
PS/2; USB
Video
2048 x 1536 @ 60Hz; DDC2B
Scan Interval
1-255 seconds (Default: 5 sec.)
Power Consumption
DC5.3V, 3.4W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.78 kg
Dimensions ( L x W x H )
21.00 x 8.70 x 5.50 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
