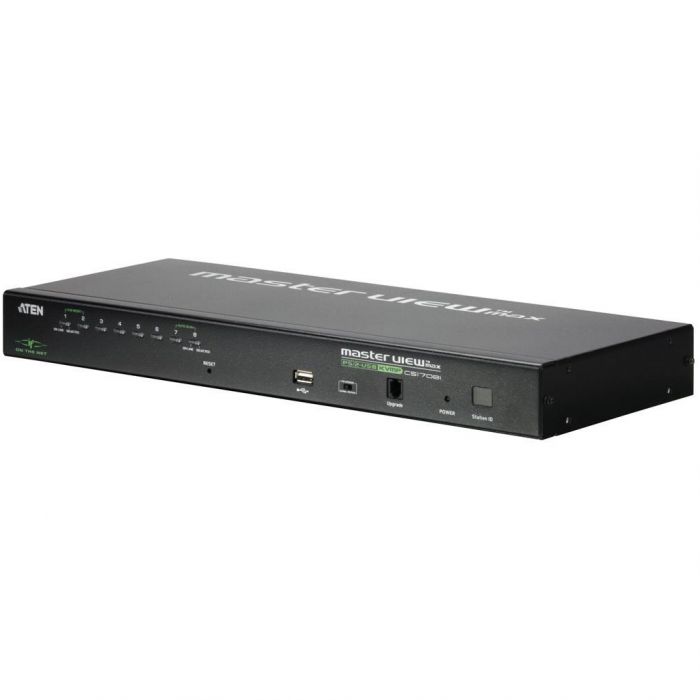

Aten CS1708i 8-Port PS/2-USB KVM on the NET

Name: Aten CS1708i 8-Port PS/2-USB KVM on the NET
Brand: Aten
SKU: CS1708I
Price: 606.69 EUR
Availability: InStock

€606.69 €501.40

Item in stock

8 Port PS/2-USB KVM on the NET With 1 Local/Remote User Access

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The CS1708i is an 8-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1708i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature “Video DynaSync”, makes sure that an optimal video resolution can be maintained. In addition it’s easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 128.

At the console side users can connect a VGA monitor / LCD and a USB or PS/2 keyboard and mouse for local operation. A dedicated USB port enables the connection of a USB peripheral.

Furthermore Aten has developed several special features for over IP management:
- Message board: allows IP users to chat
- Panel Array mode: monitor all the connected servers in 1 screen
- Mouse DynaSync: synchronizes mouse movements, to prevent any delay

Voor meer informatie.

Features

• Management
• Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
• Up to 32 concurrent logins
• Multilanguage web UI support featuring a tree-structured local and remote OSD
• Adjustable video quality for flexible adaptation to diverse network environments
• Auto Scan feature for monitoring user-selected computers
• Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
• Firmware upgradable
• Backup and restore configuration and user account settings
• Event logging
• Enable/disable browser access
• IPv6 capable

Ease-to-Use Interface
• Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
• Multiplatform client support (windows, Mac OS X, Linux, Sun)
• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
• Port names automatically reconfigured when station sequence is changed
• Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
• Windows client and Java client software support; Java client works with all operating systems

Advanced Security
• Secure keyboard/mouse/video transmission via RC4 128 bit encryption
• Supports SSL 128bit data encryption and RSA 1024bit certificates for secure user logins from a browser
• Two level password security - up to 64 user accounts with separate profiles for each
• External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
• Support for IP/MAC Filter
• Local and remote access logged and authenticated

Virtual Remote Desktop
• Resizable remote desktop window
• Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
• Mouse DynaSync™
• On-screen keyboard with multilanguage support
• BIOS-level access

Hardware
• 8-port remote access KVM switch - monitor and control up to 8 computers from a single KVM console
• Daisy chain up to 15 additional units - control up to 128 computers from a single console*
• Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
• Hot pluggable - add or remove computers without having to power down the switch
• Multiplatform support - Windows, Linux, Mac, and Sun
• Front panel USB hub allows connected computers to access USB peripherals
• Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
• USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
• Supports USB keyboards for PC, Mac and Sun
• Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Rack mountable in a 19 (1U) system rack

*Compatible KVM Switches include the following: ACS1208A, ACS1216A, CS1708, CS1716, CS1708A, CS1716A, KH1508, KH1516

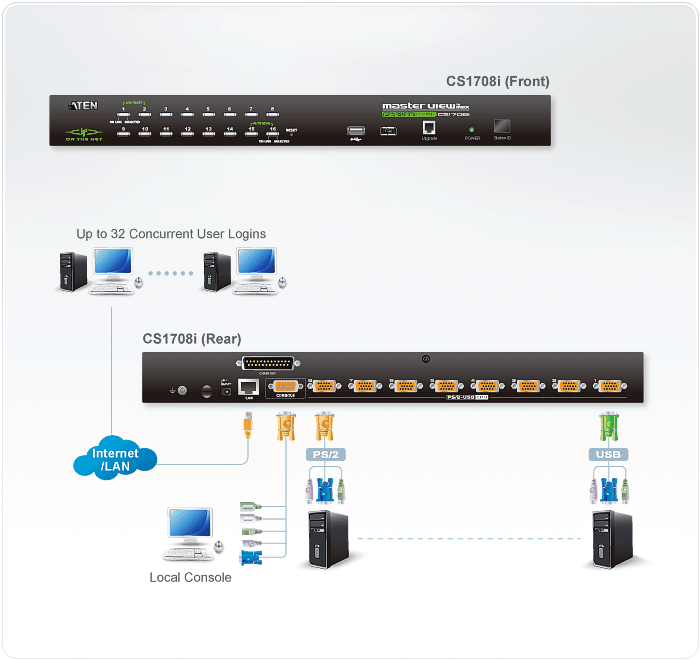

Diagram

Content

• 1x CS1708i KVM over IP Switch
• 1x 2L-5202P PS/2 KVM Cable
• 1x 2L-5202U USB KVM Cable
• 1x LIN5-27X6-U21G Console Cable
• 1x Firmware Upgrade Cable
• 1x Mounting Kit
• 1x Foot Pad Set (4 pcs)
• 1x 0AD6-1605-24EG Power Adapter
• 1x Software CD
• 1x User Instructions

Specifications

Computer Connections	Direct	8
Computer Connections	Max.	128 (via daisy chain)
Port Selection		OSD/GUI; Hotkey; Pushbutton
Connectors	Console Port	1 x SPHD-18 Male (Yellow)
	KVM Ports	8 x SPHD-17 Female (Yellow)
	Daisy Chain	1 x DB-25 Male (Black)
	Power	1 x DC Jack
	LAN	1 x RJ-45 Female
	FW Upgrade	1 x RJ-11
	USB Port (1.1)	1 x USB Type A
Switches	Reset	1 x Semi-recessed Pushbutton
	Port Selection	8 x Pushbutton
	FW Upgr. Rec.	1 x Slide
LEDs	On Line	8 (Orange)
	Selected	8 (Green)
	Station ID	2 x 7-segment (Orange)
	Power	1 (Dark Green)
	10/100 Mbps	1 (Orange/Green - at LAN port)
Emulation	Keyboard/Mouse	PS/2, USB
Video	Local Console	2048 x 1536; DDC2B
Video	Remote	1600 x 1200 @ 60Hz / 24bit color depth
Scan Interval (OSD Select)		1–255 sec.
Power Consumption		DC 5.3 V; 9.5W
Environment	Operating Temp.	0–50°C
	Storage Temp.	-20–60°C
	Humidity	0–80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	2.81 kg
	Dimensions (L x W x H)	43.30 x 16.00 x 4.40 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holder
