The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded* bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers. Voor meer informatie.
Features
• One USB-PS/2 console controls 8 computers • Cascade up to 2 levels - control up to 64 computers • Dual Interface - supports computers with PS/2 or USB keyboards and mice • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports • Supports USB keyboards for PC, Mac and Sun • Auto PS/2 and USB interface detection • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere • Superior video quality - up to 2048 x 1536; DDC2B • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each • Auto Scan feature for monitoring user-selected computers • Hot pluggable - add or remove computers without having to power down the switch • Buzzer on/off via hotkey and OSD • Firmware upgradeable • No software installation required • Designed for desktop or rack mount (19 system rack, 1U)

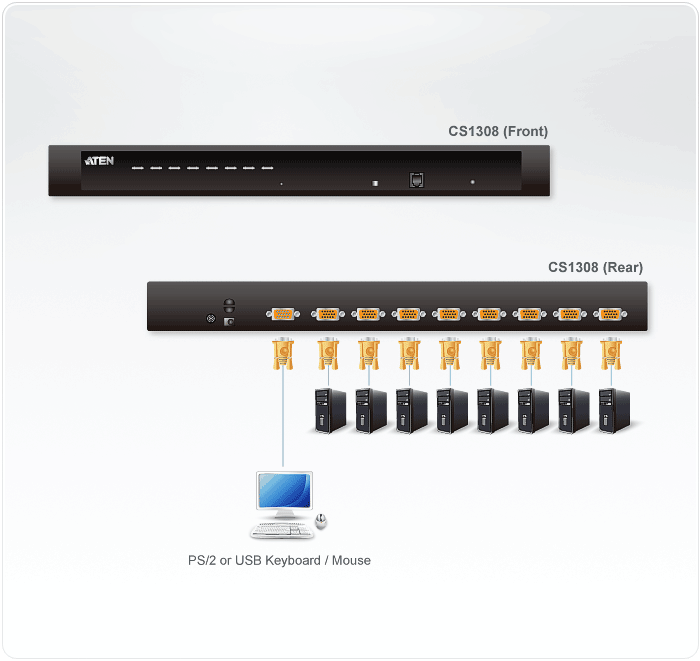

Diagram
Content
• 1x CS1308 KVM Switch with Rack Mount Kit • 1x LIN5-27X6-U21G Console cable • 1x Firmware Upgrade cable • 1x Foot Pad set (4 pads) • 1x 0AD6-1605-24EG Power Adapter • 1x Mounting Kit • 1x User Instructions
Specifications
Computer Connections
Direct
8
Max.
64 (via Cascade)
Port Selection
OSD, Hotkeys, Pushbuttons
Connectors
Console Port
Keyboard
1 x SPHD-18 Male (Yellow)
Video
Mouse
KVM Ports
Keyboard
8 x SPHD-15 Female (Yellow)
Video
Mouse
FW Upgrade
1 x RJ-11 Female (Black)
Power
1 x DC Jack
Switches
Port
8 x Pushbutton
FW Upgrade
1 x Slide
LEDs
On Line
8 (Orange)
Selected
8 (Green)
Power
1 (Dark Green)
Emulation
Keyboard/Mouse
PS/2, USB
Video
2048 x 1536; DDC2B
Scan Interval
1-255 Seconds
Power Consumption
DC 5.3 V; 5 W
Environment
Operating Temp.
0-50?C
Storage Temp.
-20-60?C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
1.89 kg
Dimensions (L x W x H)
43.30 x 16.00 x 4.40 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
