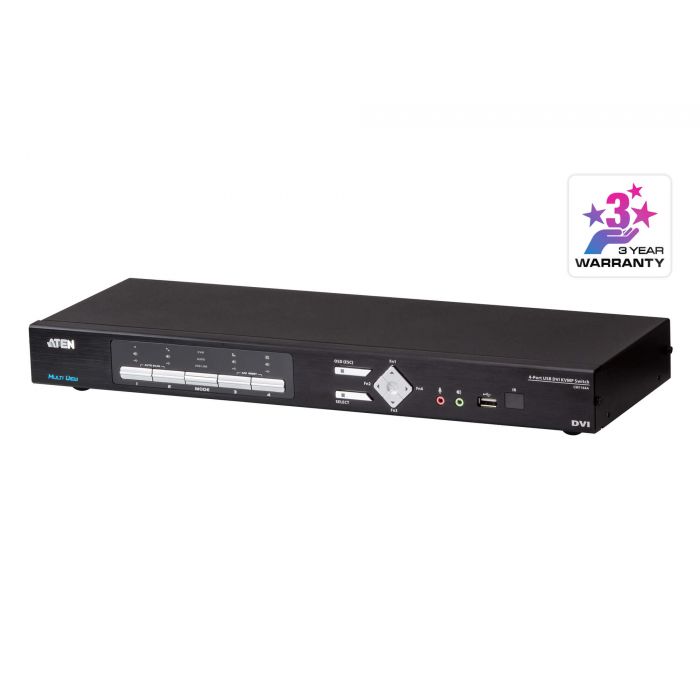

ATEN CM1164A 4-Port USB DVI Multi-View KVMP™ Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time with independent keyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and Full Screen mode.
Features
Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
System configuration via front panel, OSD, IR Remote – display mode and port selection
Supports superior video quality – Up to 1920 x 1200; YCbCr 4:2:2
Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs
DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console
Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation
Boundless Switching Focus – a window frame to indicate which computer that it currently has the focus
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
HDCP 1.4 compliant
Supports RS-232 commands
Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation / bypass feature that support most multimedia keyboards
Independent switching for USB peripheral port, audio function and KVM switch focus
Auto Scan feature
Power on detection
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
Full bass response provides a rich experience for 2.1 channel audio
Supports keyboard combinations via emulation (for Sun / Mac)
Diagram
Content
1x CM1164A 4-Port USB DVI Multi-View KVMP™ Switch4x LIN5-35W1-W11G KVM Cables (DVI-D, USB, Audio)1x LIN2-418K-E12G Power Cord1x 2XRT-0013G IR Remote Control1x Rack Mount Kit1x User Instructions
2 x USB Type A Female 1 x Single Link DVI-D Female (White) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) 2 x RJ-45
KVM Ports
4 x USB Type B Female 4 x Single Link DVI-D Female (White) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
