The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, dirt, and harsh environmental influences.
The CE800B has built-in USB ports that support USB Mass Storage compliant flash drives. The addition of a Type B USB port on the local unit means that the flash drive facility is fully supported in both PC-only and KVM switch installation.
• Cat 5e cable to connect the Local and Remote Units - up to 250 m (825 ft) apart • Dual console operation - control your system(s) from both the local and remote consoles • Pushbutton selection of the active console • Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing • Special security feature requires login when mounting an external USB storage device on the remote unit • Supports VGA, SVGA, and multisync monitors local monitor supports DDC; DDC2; DDC2B • High resolution video - up to 1920 x 1200 @ 60 Hz • Built-in 8KV/15KV ESD protection and 2KV surge protection • Adjustable gain control - manually adjusts signal strength to compensate for distance • Supports stereo speakers and stereo microphone • Supports Microsoft Intellimouse and the scrolling wheel on most mice • Upgradable firmware • Built-in ASIC for greater reliability and compatibility

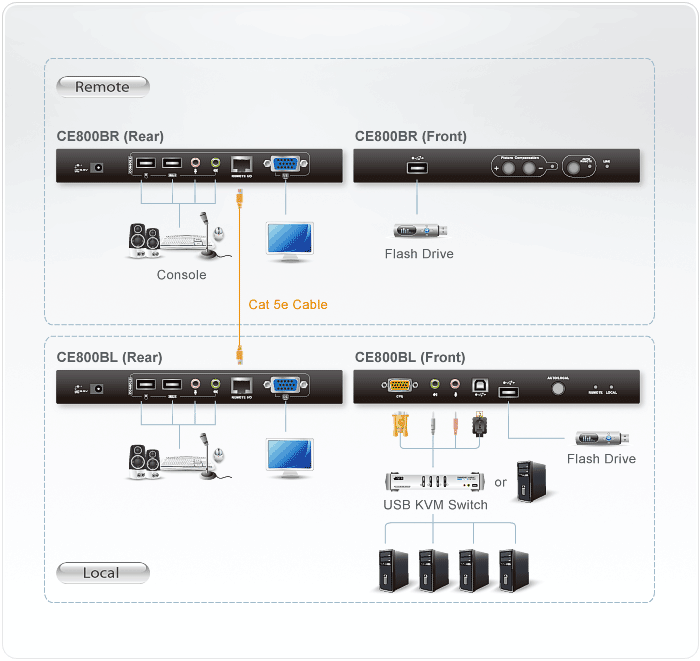

Diagram
Content
• 1x CE800BL USB KVM Extender (Local Unit)
• 1x CE800BR USB KVM Extender (Remote Unit)
• 1x 2L-5302U KVM Cable (1.8 m)
• 2x 0AD6-1005-26EG Power Adapters
• 1x Firmware Upgrade Cable
• 1x USB Cable (1.8 m)
• 1x Mounting Kit
• 1x User Instructions
• 1x Grounding Information Card
Specifications
Function
CE800BL
CE800BR
Computer Connections
1
N/A
Connectors
Console
Keyboard
1 x USB Type A Female (White)
Video
1 x HDB-15 Female (Blue)
Mouse
1 x USB Type A Female (White)
Speakers
1 x Mini Stereo Jack (Green)
Microphone
1 x Mini Stereo Jack (Pink)
KVM Ports
Keyboard/ Video / Mouse
1 x SPHD-15 Female (Yellow)
N/A
USB Port
1 x USB Type A (Female)
Speakers
1 x Mini Stereo Jack (Green)
N/A
Microphone
1 x Mini Stereo Jack (Pink)
N/A
F/W Upgrade
1 x 4-conductor 3.5 mm Jack
N/A
Power
1 x DC Jack
Unit to Unit (Link)
1 x RJ-45
Switches
Operating Mode Selection
1 x Pushbutton
Picture Compensation
N/A
2 x Pushbutton
LEDs
Local
1 (Green)
N/A
Remote
1 (Green)
1 (Green)
Link
N/A
1 (Green)
Compensation
N/A
1 (Orange)
Video
1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m
Power Consumption
DC5V, 6W
Environment
Operating Temp.
0-50?C
Storage Temp.
-20-60?C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.50 kg
0.49 kg
Dimensions (L x W x H)
20.00 x 8.00 x 2.50 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
